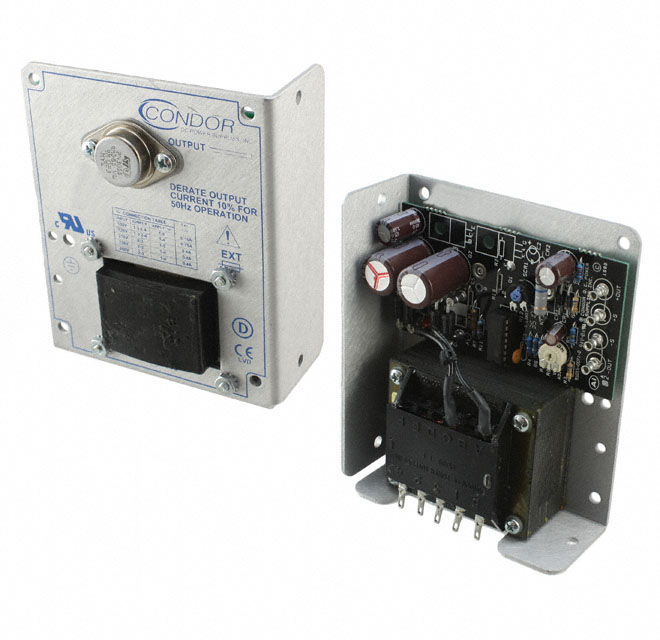

HAD15-0.4-A+G
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER +/-15V 12W
Deep-Dive with AI
Search across all available documentation for this part.
HAD15-0.4-A+G
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER +/-15V 12W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HAD15-0.4-A+G |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 400 mA |
| Current - Output 2 | 400 mA |
| Efficiency | 55 % |
| Features | Remote Sense, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 12 W |
| Size / Dimension [x] | 124 mm |
| Size / Dimension [x] | 4.88 " |
| Size / Dimension [y] | 4 " |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [z] | 45.7 mm |
| Size / Dimension [z] | 1.8 " |
| Type | Linear |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 99.62 | |
| 5 | $ 96.18 | |||
| 20 | $ 92.75 | |||
| 40 | $ 91.37 | |||
Description
General part information
HAD15 Series
Linear AC DC Converters 2 Output 15V -15V 100 ~ 240 VAC Input
