UCC5390SCDEVM-010

Active

Texas Instruments

EVALUATION MODULE

Search across all available documentation for this part.

Active

Texas Instruments

EVALUATION MODULE

Technical Specifications

Parameters and characteristics for this part

Part	Number of Channels	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Common Mode Transient Immunity (Min) [Min]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Technology	Pulse Width Distortion (Max) [Max]	Mounting Type	Approval Agency	Voltage - Isolation	Supplied Contents	Function	Utilized IC / Part	Type	Propagation Delay tpLH / tpHL (Max) [Max]
Texas Instruments UCC5390ECD	1	10 A	10 A	10 ns	10 ns	8-SOIC	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	100 V/ns	100 ns	100 ns	13.2 V	33 V	Capacitive Coupling	20 ns	Surface Mount	CQC CSA UR VDE	3000 VAC
Texas Instruments UCC5390SCD	1	10 A	10 A	10 ns	10 ns	8-SOIC	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	100 V/ns	100 ns	100 ns	13.2 V	33 V	Capacitive Coupling	20 ns	Surface Mount	CQC CSA UR VDE	3000 VAC
Texas Instruments UCC5390SCDEVM-010																						Board(s)	Gate Driver	UCC5390	Power Management
Texas Instruments UCC5390ECDR	1	10 A	10 A	10 ns	10 ns	8-SOIC	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	100 V/ns			13.2 V	33 V	Capacitive Coupling	20 ns	Surface Mount	CQC CSA UR VDE	3000 VAC					65 ns
Texas Instruments UCC5390ECDWVEVM																						Board(s)	Gate Driver	UCC5390	Power Management

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.80

General part information

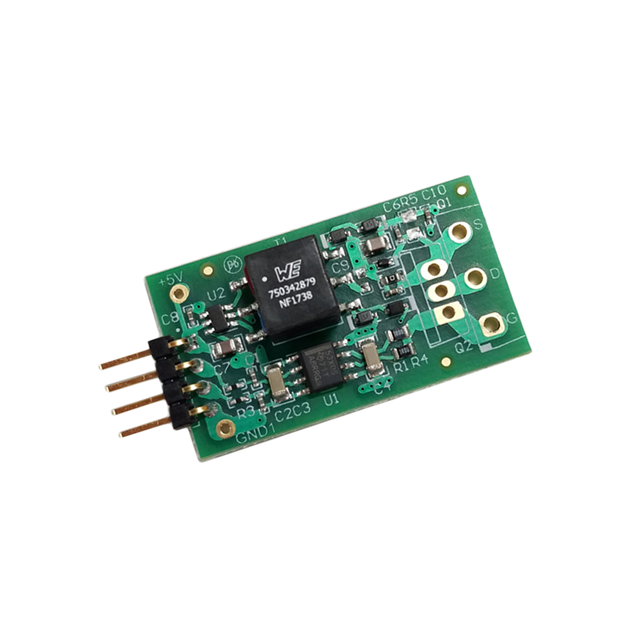

UCC5390 Gate Driver Power Management Evaluation Board
