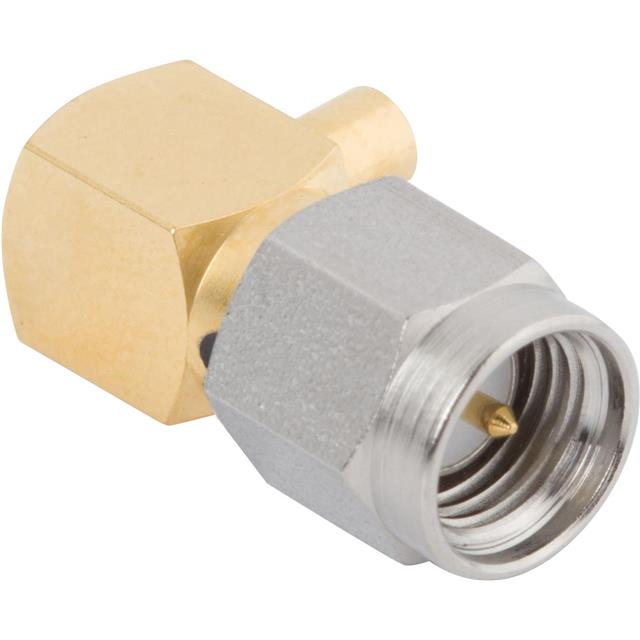

SF2912-6001

Active

Amphenol SV Microwave

CONN SMA PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMA PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SF2912-6001

Body Finish	Gold; Passivated
Body Material	Stainless Steel
Cable Group	RG-402 (.141" Flexible)
Cable Group	0.141 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold, Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Shield Termination	Solder

Part	Frequency - Max [Max]	Mounting Type	Number of Ports	Mating Cycles	Center Contact Material	Connector Style	Center Contact Plating	Body Finish	Contact Termination	Shield Termination	Cable Group	Cable Group	Impedance	Housing Color	Connector Type	Dielectric Material	Body Material
Amphenol SV Microwave SF2912-6001	12.4 GHz	Free Hanging (In-Line) Right Angle	1	500	Brass	SMA	Gold	Gold; Passivated	Solder	Solder	RG-402 (.141" Flexible)	0.141 in	50 Ohms	Gold Silver	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 38.30

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
