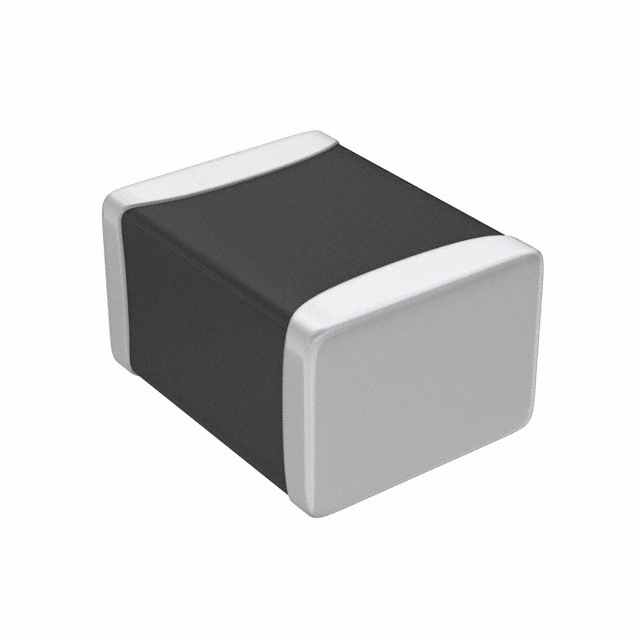

BLE32PN300SZ1L
ActiveMurata Power Solutions Inc.
FERRITE CHIP, 1 FUNCTION(S), 10A, ROHS AND REACH COMPLIANT, EIA STD PACKAGE SIZE 1210, SMD, 2 PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLE32PN300SZ1L
ActiveMurata Power Solutions Inc.
FERRITE CHIP, 1 FUNCTION(S), 10A, ROHS AND REACH COMPLIANT, EIA STD PACKAGE SIZE 1210, SMD, 2 PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BLE32PN300SZ1L |
|---|---|
| Current Rating (Max) [Max] | 10 A |
| DC Resistance (DCR) (Max) | 1.6 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 0.087 in |
| Height (Max) [Max] | 2.2 mm |
| Impedance @ Frequency | 30 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.79 | |
| 10 | $ 0.71 | |||
| 25 | $ 0.53 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.40 | |||
| Digi-Reel® | 1 | $ 0.79 | ||
| 10 | $ 0.71 | |||
| 25 | $ 0.53 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.40 | |||
| Tape & Reel (TR) | 1500 | $ 0.34 | ||
| 3000 | $ 0.33 | |||
Description
General part information
BLE32PN Series
30 Ohms @ 100 MHz 1 Power Line Ferrite Bead 1210 (3225 Metric) 10A 1.6mOhm
