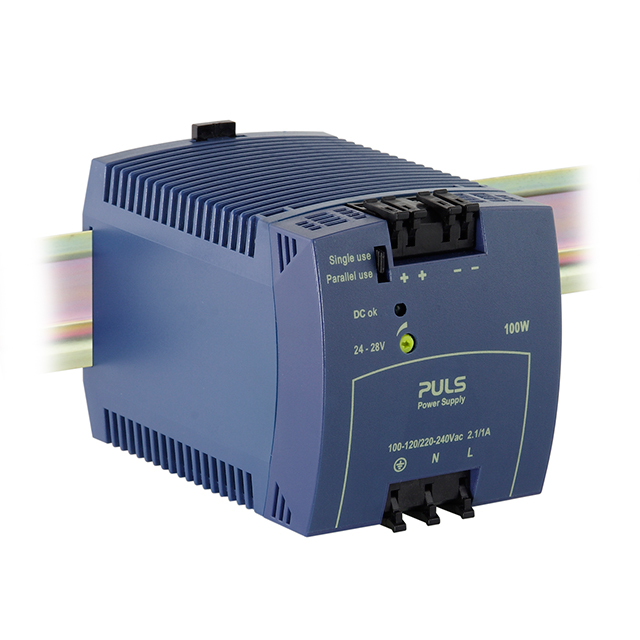

ML100.109

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 100W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	ML100.109

AC Voltage - Input [Max]	120 VAC, 240 VAC
AC Voltage - Input [Min]	100 VAC, 200 VAC
Applications	ITE (Commercial)
Approval Agency	UL, CSA, EAC, IEC
Current - Output (Max) [Max]	4.2 A
Efficiency	90 %
Features	Load Sharing, Adjustable Output, Conformal Coating
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	100 W
Size / Dimension [x]	4.06 "
Size / Dimension [x]	103 mm
Size / Dimension [y]	2.87 "
Size / Dimension [y]	73 mm
Size / Dimension [z]	75 mm
Size / Dimension [z]	2.95 "
Standard Number	61010-2-201, 60950-1, 508, Class I Div 2
Voltage - Output 1	24 V

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Input Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Approval Agency	Applications	Efficiency	Power (Watts)	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Current - Output (Max) [Max]	Number of Outputs
PULS, LP ML100.102	75 mm	2.87 "	73 mm	4.06 "	2.95 "	103 mm	12 V	AC	Adjustable Output Load Sharing	70 °C	0 °C	508 60950-1 61010-2-201 Class I Div 2	ABS CSA DNV GL EAC IEC UL	ITE (Commercial)	88.5 %	90 W	132 VAC 264 VAC	85 VAC 184 VAC	7.5 A	1
PULS, LP ML100.100	75 mm	2.87 "	73 mm	4.06 "	2.95 "	103 mm	24 V	AC	Adjustable Output Load Sharing	70 °C	0 °C	508 60950-1 61010-2-201 Class I Div 2	ABS CSA DNV GL EAC IEC UL	ITE (Commercial)	90 %	100 W	132 VAC 264 VAC	85 VAC 184 VAC	4.2 A	1
PULS, LP ML100.109	75 mm	2.87 "	73 mm	4.06 "	2.95 "	103 mm	24 V	AC	Adjustable Output Conformal Coating Load Sharing	70 °C	-10 °C	508 60950-1 61010-2-201 Class I Div 2	CSA EAC IEC UL	ITE (Commercial)	90 %	100 W	120 VAC 240 VAC	100 VAC 200 VAC	4.2 A	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 309.60

General part information

AC/DC DIN RAIL SUPPLY 24V 100W
