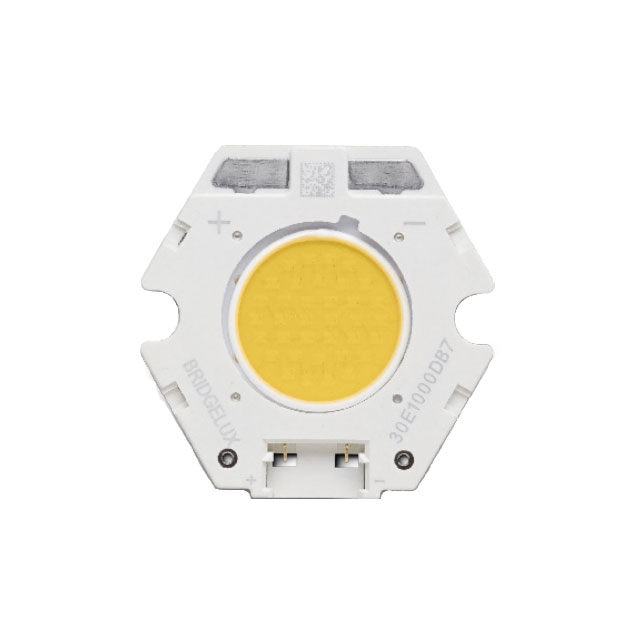

BXRC-57C1001-C-83

Active

BRIDGELUX

LED COB VERO 10C WH STARBD 5700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-57C1001-C-83

Active

BRIDGELUX

LED COB VERO 10C WH STARBD 5700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRC-57C1001-C-83

CCT (K)	5700 K
Color	Cool, White
Configuration	Starboard
CRI (Color Rendering Index)	70
Current - Max [Max]	1 A
Current - Test	300 mA
Height [z]	1.8 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	10 mm
Lumens/Watt @ Current - Test	188 lm/W
Luminous Flux @ Current/Temperature	1728 lm
Size / Dimension [diameter]	20 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	30.7 V

BXRC-57 Series

...

Part	CRI (Color Rendering Index)	Configuration	Voltage - Forward (Vf) (Typ)	CCT (K)	Type	Current - Max [Max]	Temperature - Test	Height [z]	Size / Dimension [diameter]	Luminous Flux @ Current/Temperature	Color	Viewing Angle	Lumens/Watt @ Current - Test	Current - Test	Lens Type	Light Emitting Surface (LES) [diameter]	Features
BRIDGELUX BXRC-57C4001-B-73	70	Round	33.9 V	5700 K	Chip On Board (COB)	1.8 A	85 °C	1.9 mm	36.2 mm	4789 lm	Cool White	120 °	157 lm/W	900 mA	Flat	18.4 mm
BRIDGELUX BXRC-57C1001-C-74-SE	70	Round	33.8 V	5700 K	Chip On Board (COB)	720 mA	85 °C	3.6 mm	30.8 mm	1860 lm	Cool White	120 °	153 lm/W	360 mA	Flat	9.9 mm
BRIDGELUX BXRC-57C1001-C-83	70	Starboard	30.7 V	5700 K	Chip On Board (COB)	1 A		1.8 mm	20 mm	1728 lm	Cool White	120 °	188 lm/W	300 mA	Flat	10 mm
BRIDGELUX BXRC-57C4001-C-73	70	Round	33.9 V	5700 K	Chip On Board (COB)	2.34 A	85 °C	1.9 mm	36.2 mm	6227 lm	Cool White	120 °	157 lm/W		Flat	18.4 mm
BRIDGELUX BXRC-57E2001-C-84-SE	80	Round	33.4 V	5700 K	Chip On Board (COB)	1.75 A		3.6 mm	36.2 mm	2920 lm	Cool White	120 °	175 lm/W	500 mA	Flat	13.3 mm
BRIDGELUX BXRC-57E2001-B-74-SE	80	Round	33.9 V	5700 K	Chip On Board (COB)	900 mA	85 °C	3.6 mm	36.2 mm	2340 lm	Cool White	120 °	153 lm/W	450 mA	Flat	13.4 mm
BRIDGELUX BXRC-57E1001-D-74	80	Starboard	26 V	5700 K	Chip On Board (COB)	700 mA		1.9 mm	20 mm	1492 lm	Cool White	120 °	164 lm/W	350 mA	Flat	9.9 mm	With Connector
BRIDGELUX BXRC-57C2001-C-74	70	Round	34.1 V	5700 K	Chip On Board (COB)	1.26 A	85 °C	1.9 mm	36.2 mm	3353 lm	Cool White	120 °	156 lm/W	630 mA	Flat	13.2 mm	With Connector
BRIDGELUX BXRC-57C2001-C-73-SE	70	Round	33.9 V	5700 K	Chip On Board (COB)	1.26 A	85 °C	3.6 mm	36.2 mm	3414 lm	Cool White	120 °	160 lm/W	630 mA	Flat	13.4 mm
BRIDGELUX BXRC-57C4001-D-73	70	Round	28.3 V	5700 K	Chip On Board (COB)	2.1 A	85 °C	1.9 mm	36.2 mm	4656 lm	Cool White	120 °	157 lm/W	1.05 A	Flat	18.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.02
		10	$ 3.64
		80	$ 3.38

Description

General part information

BXRC-57 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 Vero® 10 Array White, Cool Starboard
