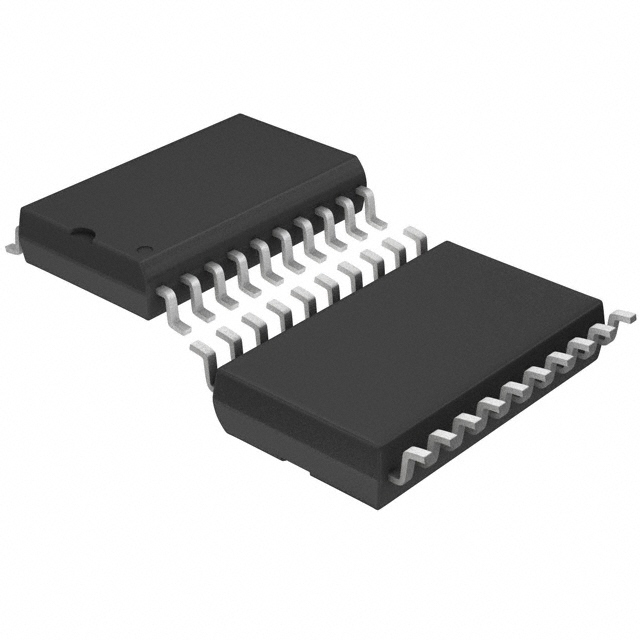

SI88621EC-ISR

Active

Skyworks Solutions Inc.

DGTL ISOLTR 5KV 2CH GP 20-SOIC

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

DGTL ISOLTR 5KV 2CH GP 20-SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	SI88621EC-ISR

Channel Type	Unidirectional
Common Mode Transient Immunity (Min) [Min]	40 kV/µs
Data Rate	100 Mbps
Inputs - Side 1/Side 2	1/1
Isolated Power	False
Mounting Type	Surface Mount
Number of Channels [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	20-SOIC
Package / Case [y]	0.295 in
Package / Case [y]	7.5 mm
Propagation Delay tpLH / tpHL (Max) [Max] [custom]	23 ns
Propagation Delay tpLH / tpHL (Max) [Max] [custom]	18 ns
Pulse Width Distortion (Max) [Max]	7 ns
Rise / Fall Time (Typ) [custom]	2.5 ns
Rise / Fall Time (Typ) [custom]	2.5 ns
Supplier Device Package	20-SOIC
Technology	Capacitive Coupling
Type	General Purpose
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	3 V

Part	Number of Channels [custom]	Technology	Inputs - Side 1/Side 2	Pulse Width Distortion (Max) [Max]	Channel Type	Package / Case	Package / Case [y]	Package / Case [y]	Operating Temperature [Max]	Operating Temperature [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Propagation Delay tpLH / tpHL (Max)	Type	Qualification	Grade	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Mounting Type	Supplier Device Package	Common Mode Transient Immunity (Min) [Min]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]
Skyworks Solutions Inc. SI88621BD-ISR	2	Capacitive Coupling	1/1	4.8 ns	Unidirectional	20-SOIC	0.295 in	7.5 mm	125 °C	-40 °C	2.5 ns	2.5 ns	12.6 ns 17.5 ns	General Purpose	AEC-Q100	Automotive	5.5 V	3 V	100 Mbps	Surface Mount	20-SOIC	40 kV/µs
Skyworks Solutions Inc. SI88621EC-ISR	2	Capacitive Coupling	1/1	7 ns	Unidirectional	20-SOIC	0.295 in	7.5 mm	125 °C	-40 °C	2.5 ns	2.5 ns		General Purpose			5.5 V	3 V	100 Mbps	Surface Mount	20-SOIC	40 kV/µs	23 ns	18 ns
Skyworks Solutions Inc. SI88621EC-ASR	2	Capacitive Coupling	1/1	7 ns	Unidirectional	20-SOIC	0.295 in	7.5 mm	125 °C	-40 °C	2.5 ns	2.5 ns		General Purpose	AEC-Q100	Automotive	5.5 V	3 V	100 Mbps	Surface Mount	20-SOIC	40 kV/µs	23 ns	18 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Digital Isolator 5000Vrms 2 Channel 100Mbps 40kV/µs CMTI 20-SOIC (0.295", 7.50mm Width)
