CX90B-16P
ActiveHirose Electric USA, Inc.

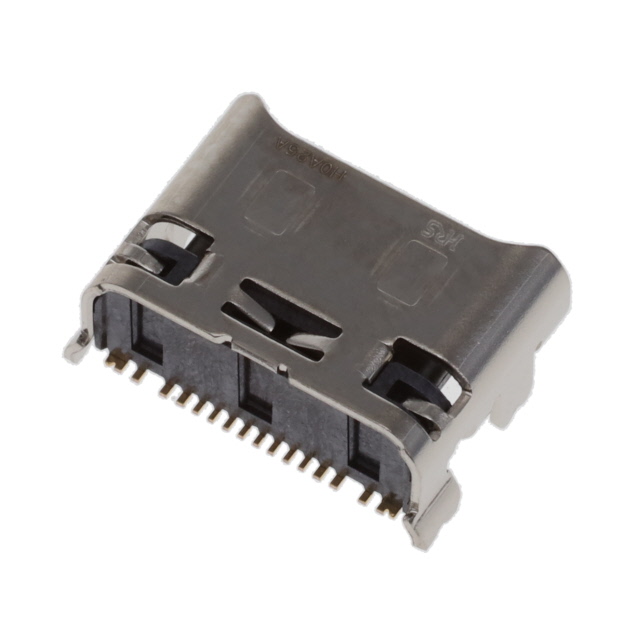

USB CONN, 3.1 TYPE C, R/A RCPT, 16POS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
CX90B-16P
ActiveHirose Electric USA, Inc.
USB CONN, 3.1 TYPE C, R/A RCPT, 16POS ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CX90B-16P |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 5 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal, Reversible |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 20 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.35 | |
| 10 | $ 1.99 | |||
| 25 | $ 1.87 | |||
| 50 | $ 1.78 | |||
| 100 | $ 1.69 | |||
| 250 | $ 1.59 | |||
| 500 | $ 1.51 | |||
| Digi-Reel® | 1 | $ 2.62 | ||
| 10 | $ 2.28 | |||
| 25 | $ 2.18 | |||
| 50 | $ 2.13 | |||
| 100 | $ 2.04 | |||
| 250 | $ 1.84 | |||
| 500 | $ 1.70 | |||
| Tape & Reel (TR) | 1500 | $ 1.40 | ||
| 3000 | $ 1.33 | |||
| 4500 | $ 1.29 | |||
| 7500 | $ 1.25 | |||
| Newark | Each (Supplied on Full Reel) | 1500 | $ 1.47 | |
| 3000 | $ 1.35 | |||
Description
General part information
CX90B Series
USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through Hole
