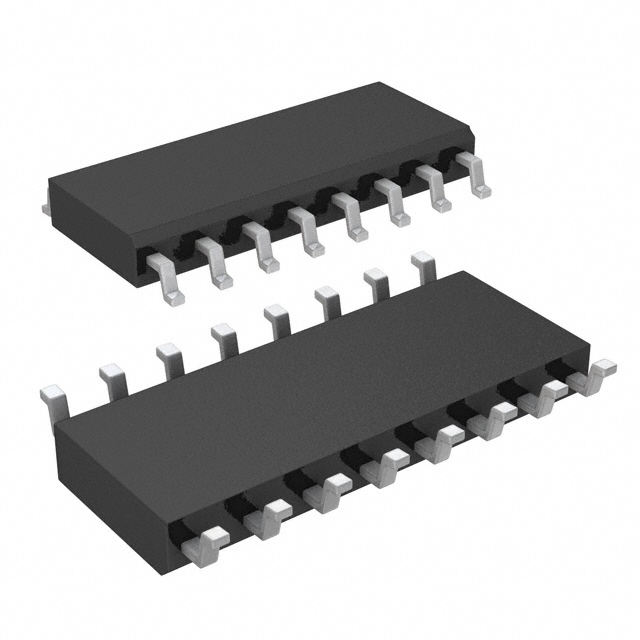

DG202DY+T

Active

Analog Devices Inc./Maxim Integrated

IC SW SPST-NOX4 200OHM 16SOIC

Deep-Dive with AI

Search across all available documentation for this part.

DG202DY+T

Active

Analog Devices Inc./Maxim Integrated

IC SW SPST-NOX4 200OHM 16SOIC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DG202DY+T

Channel Capacitance (CS(off), CD(off)) [custom]	5 pF
Channel Capacitance (CS(off), CD(off)) [custom]	5 pF
Charge Injection	20 pC
Current - Leakage (IS(off)) (Max)	5 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max) [Max]	200 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Supplier Device Package	16-SOIC
Switch Circuit	SPST - NO
Switch Time (Ton, Toff) (Max) [custom]	450 ns
Switch Time (Ton, Toff) (Max) [custom]	600 ns
Voltage - Supply, Dual (V±) [Max]	18 V
Voltage - Supply, Dual (V±) [Min]	-4.5 V

DG202 Series

Part	Number of Circuits	Current - Leakage (IS(off)) (Max)	Multiplexer/Demultiplexer Circuit	Voltage - Supply, Dual (V±) [Max]	Voltage - Supply, Dual (V±) [Min]	Switch Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Charge Injection	Mounting Type	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	On-State Resistance (Max) [Max]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Package / Case	Package / Case [x]	Package / Case [y]	Package / Case	Package / Case
Analog Devices Inc./Maxim Integrated DG202CSE+T	4	5 nA	1:1	18 V	-4.5 V	SPST - NO	70 °C	0 °C	16-SOIC	20 pC	Surface Mount	5 pF	5 pF	200 Ohm	450 ns	600 ns	16-SOIC	0.154 in	3.9 mm
Analog Devices Inc./Maxim Integrated DG202CJ+	4	5 nA	1:1	18 V	-4.5 V	SPST - NO	70 °C	0 °C	16-PDIP	20 pC	Through Hole	5 pF	5 pF	200 Ohm	450 ns	600 ns	16-DIP			0.3 in	7.62 mm
Analog Devices Inc./Maxim Integrated DG202CSE.C30341	4	5 nA	1:1	18 V	-4.5 V	SPST - NO	70 °C	0 °C	16-SOIC	20 pC	Surface Mount	5 pF	5 pF	200 Ohm	450 ns	600 ns	16-SOIC	0.154 in	3.9 mm
Analog Devices Inc./Maxim Integrated DG202DY+T	4	5 nA	1:1	18 V	-4.5 V	SPST - NO	85 °C	-40 °C	16-SOIC	20 pC	Surface Mount	5 pF	5 pF	200 Ohm	450 ns	600 ns	16-SOIC	0.154 in	3.9 mm
Analog Devices Inc./Maxim Integrated DG202CSE-T	4	5 nA	1:1	18 V	-4.5 V	SPST - NO	70 °C	0 °C	16-SOIC	20 pC	Surface Mount	5 pF	5 pF	200 Ohm	450 ns	600 ns	16-SOIC	0.154 in	3.9 mm
Analog Devices Inc./Maxim Integrated DG202DY	4	5 nA	1:1	18 V	-4.5 V	SPST - NO	85 °C	-40 °C	16-SOIC	20 pC	Surface Mount	5 pF	5 pF	200 Ohm	450 ns	600 ns	16-SOIC	0.154 in	3.9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DG202 Series

4 Circuit IC Switch 1:1 200Ohm 16-SOIC

Documents

Technical documentation and resources

No documents available
