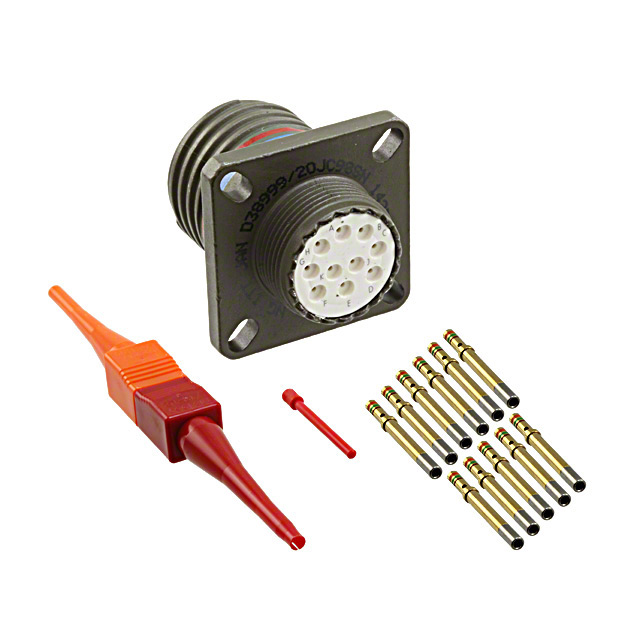

D38999/20JC98SN

Active

ITT Cannon, LLC

CONN RCPT FMALE 10POS GOLD CRIMP

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT FMALE 10POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20JC98SN

Applications	Aviation, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	10
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Composite
Shell Finish	Olive Drab Cadmium
Shell Material	Composite
Termination	Crimp

Part	Termination	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Positions	Contact Material	Primary Material	Contact Finish - Mating	Shell Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Shell Finish	Color	Applications
ITT Cannon, LLC D38999/20JC98PN	Crimp	N	1.27 µm	50 µin	Male Pins Receptacle	10	Copper Alloy	Composite	Gold	Composite	Environment Resistant	-65 ░C	347 °F	Flange	Olive Drab Cadmium	Olive Drab	Aviation Marine Military
ITT Cannon, LLC D38999/20JC98SN	Crimp	N	1.27 µm	50 µin	Receptacle Female Sockets	10	Copper Alloy	Composite	Gold	Composite	Environment Resistant	-65 ░C	347 °F	Flange	Olive Drab Cadmium	Olive Drab	Aviation Marine Military

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Female Sockets Crimp

Technical documentation and resources

No documents available
