IQS525BLQNR
Azoteq Corporation
25CH. TRACKPAD/TOUCH SCREEN CONT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IQS525BLQNR
Azoteq Corporation
25CH. TRACKPAD/TOUCH SCREEN CONT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IQS525BLQNR |
|---|---|
| Current - Supply | 80 mA |
| Interface | I2C |
| Mounting Type | Surface Mount |
| Number of Inputs | 25 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 28-UFQFN |
| Proximity Detection | True |
| Resolution | 16 b |

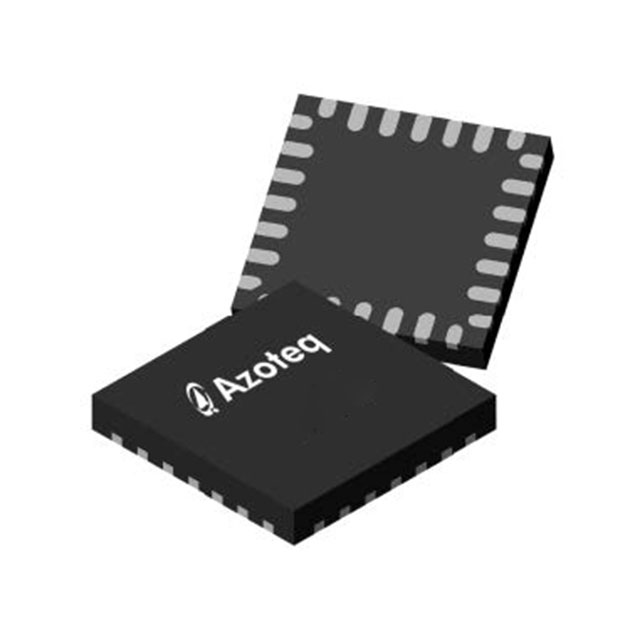

| Supplier Device Package | 28-QFN (4x4) |
| Type | Button |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.59 | |
| 10 | $ 1.23 | |||
| 25 | $ 1.02 | |||
| 50 | $ 1.00 | |||
| 100 | $ 0.91 | |||
| 500 | $ 0.80 | |||
| Digi-Reel® | 1 | $ 1.59 | ||
| 10 | $ 1.23 | |||
| 25 | $ 1.02 | |||
| 50 | $ 1.00 | |||
| 100 | $ 0.91 | |||
| 500 | $ 0.80 | |||
| Tape & Reel (TR) | 3000 | $ 0.80 | ||
Description
General part information
IQS525 Series
Capacitive Touch Button 28-QFN (4x4)
