TR9CI5000YL4BIMR6BF3

Active

GlobTek, Inc.

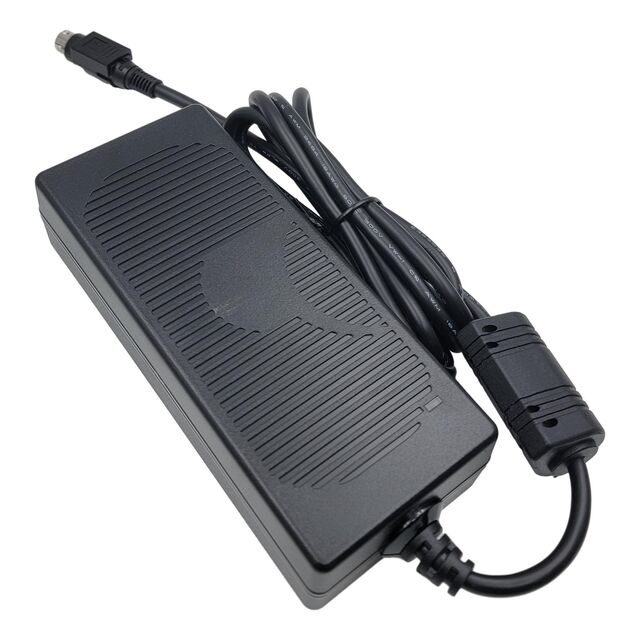

AC/DC DESKTOP ADAPTER 24V 120W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 24V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CI5000YL4BIMR6BF3

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	PSE, ETL, CB, CE, S-Mark, cETLus, VCCI, BSMI, UKRSepro, CCC, EAC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	5 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	120 W
Region Utilized	International
Size / Dimension [x]	149.3 mm
Size / Dimension [x]	5.88 in
Size / Dimension [y]	62.8 mm
Size / Dimension [y]	2.47 in
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Standard Number	62368-1, 60601-1-11, 60601-1-2, 61347-1, 60335-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Cord Length	Cord Length	Region Utilized	Input Connector	No Load Power Consumption [Max]	Input Type	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Polarization	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Efficiency	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [x]	Voltage - Output	Form	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Cord Length	Output Connector
GlobTek, Inc. TR9CI5000LCP-IM(R6B)	1.2 m	47.2 in	International	IEC 320-C14	150 mW	Cord	5 A	-20 C	40 °C	Household Appliances ITE (Commercial) Medical	Positive Center	60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	90 VAC	264 VAC	BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UKRSepro VCCI	Level VI	120 W	Barrel Plug	2.5 mm 5.5 mm	11 mm	24 V	Desktop (Class I)	149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm
GlobTek, Inc. TR9CI5000YL4BIMR6BF3		1.5 m	International	IEC 320-C14	150 mW	Cord	5 A	-10 °C	40 °C	Household Appliances ITE (Commercial) Medical		60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	90 VAC	264 VAC	BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UKRSepro VCCI	CoC Tier 2 Level VI	120 W	Power DIN			24 V	Desktop (Class I)	149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	59 in	4 Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 44.55

General part information

24V 120 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
