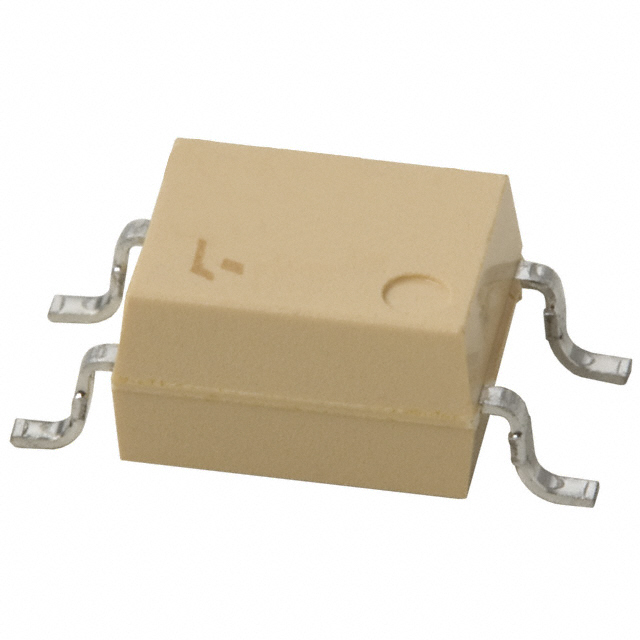

TLP190B(TPL,U,C,F)
ObsoleteToshiba Semiconductor and Storage
PHOTOCOUPLER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLP190B(TPL,U,C,F)
ObsoleteToshiba Semiconductor and Storage
PHOTOCOUPLER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLP190B(TPL,U,C,F) |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Photovoltaic |
| Package / Case | 6-SMD (4 Leads), Gull Wing |
| Supplier Device Package | 6-MFSOP, 4 Lead |
| Turn On / Turn Off Time (Typ) | 1 ms, 200 µs |
| Voltage - Forward (Vf) (Typ) | 1.4 V |
| Voltage - Isolation | 2500 Vrms |
| Voltage - Output (Max) [Max] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TLP190 Series
Optoisolator Photovoltaic Output 2500Vrms 1 Channel 6-MFSOP, 4 Lead
