C1353A.41.10
ActivePrysmian Group
MULTI-PAIR 4COND 22AWG GRAY 500'
Deep-Dive with AI
Search across all available documentation for this part.
C1353A.41.10
ActivePrysmian Group
MULTI-PAIR 4COND 22AWG GRAY 500'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1353A.41.10 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.208 in |
| Jacket (Insulation) Diameter [diameter] | 5.28 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.028 in |
| Jacket (Insulation) Thickness | 0.711 mm |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 500 ', 100 ft |
| Length [x] | 152.4 m, 30.5 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 165.44 | |
| 1 | $ 524.62 | |||
| 5 | $ 135.36 | |||
| 5 | $ 466.33 | |||
| 10 | $ 422.61 | |||
| 10 | $ 105.28 | |||
| Spool | 1000 | $ 0.85 | ||
| 2000 | $ 0.81 | |||
| 3000 | $ 0.79 | |||
| 5000 | $ 0.76 | |||
| 7000 | $ 0.74 | |||
| 10000 | $ 0.72 | |||
Description
General part information
C1353 Series

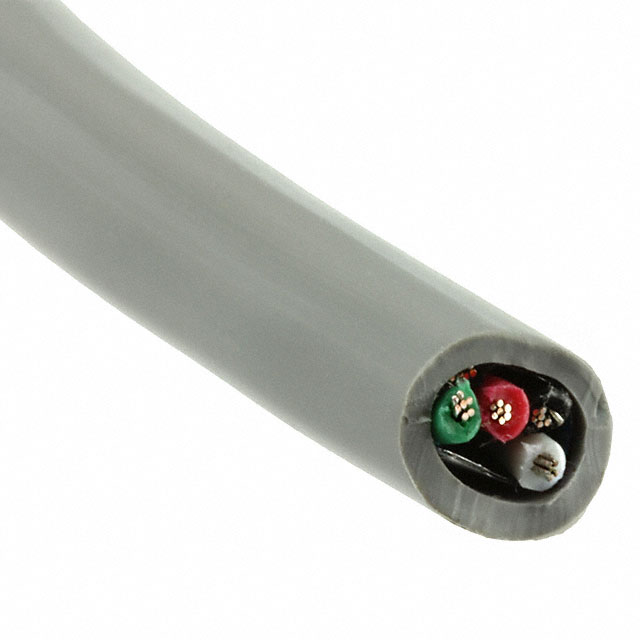

4 (2 Pair Twisted) Conductor Multi-Pair Cable Gray 22 AWG Foil 500.0' (152.4m)
Documents
Technical documentation and resources
No documents available
