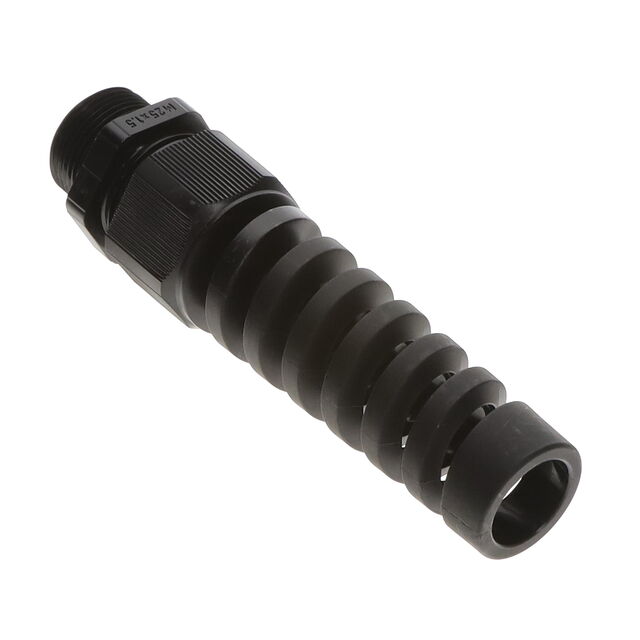

50021M25BSSW

Active

Jacob GmbH

CABLE GLAND 13-18.01MM M25

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 13-18.01MM M25

Technical Specifications

Parameters and characteristics for this part

Specification	50021M25BSSW

Color	Black
Includes	Strain Relief
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.709 in
Outside Cable Diameter (Max) [Max] [diameter]	18.01 mm
Outside Cable Diameter (Min)	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.512 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M25x1.5
Type	Cable Gland

Part	Ingress Protection	Type	Thread Length	Thread Length	Includes	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Operating Temperature [Max]	Operating Temperature [Min]	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Jacob GmbH 50021M25BS7035	IP68 - Dust Tight Waterproof	Cable Gland	0.591 in	15 mm	Strain Relief	M25x1.5	0.512 in	13 mm	100 °C	-40 °C	Gray	0.709 in	18.01 mm
Jacob GmbH 50021M25BSSW	IP68 - Dust Tight Waterproof	Cable Gland	0.591 in	15 mm	Strain Relief	M25x1.5	0.512 in	13 mm	100 °C	-40 °C	Black	0.709 in	18.01 mm
Jacob GmbH 50021M25PA08/SWG	IP68 - Dust Tight Waterproof	Cable Gland			Sealing Ring	M25x1.5					Black
Jacob GmbH 50021PABS7035	IP68 - Dust Tight Waterproof	Cable Gland	0.433 in	11 mm	Strain Relief	PG21	0.512 in	13 mm	100 °C	-40 °C	Gray	0.709 in	18.01 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 M25x1.5 Black
