AP2-192-1420-1525
ActiveEuropean Thermodynamics Ltd

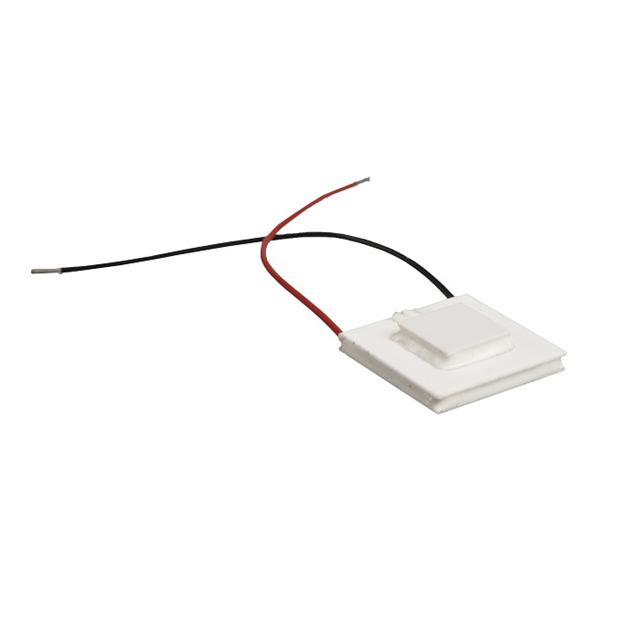

TE MODULE,2STAGE,127-65,EPOXY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AP2-192-1420-1525
ActiveEuropean Thermodynamics Ltd
TE MODULE,2STAGE,127-65,EPOXY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AP2-192-1420-1525 |
|---|---|
| Current - Max [Max] | 5.6 A |
| Delta Tmax @ Th | 95 °C |
| Features | Lead Wires |
| Number of Stages | 2 |
| Operating Temperature | 194 °F |
| Qmax @ Th | 32.7 W |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [y] | 40 mm |
| Voltage - Max [Max] | 16.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 100.19 | |
| 5 | $ 94.16 | |||
| 10 | $ 91.68 | |||
| 25 | $ 88.50 | |||
| 50 | $ 86.17 | |||
| 100 | $ 83.90 | |||
Description
General part information
AP2-192 Series
Peltier Module 32.7W @ 25°C 5.6 A 90°C
