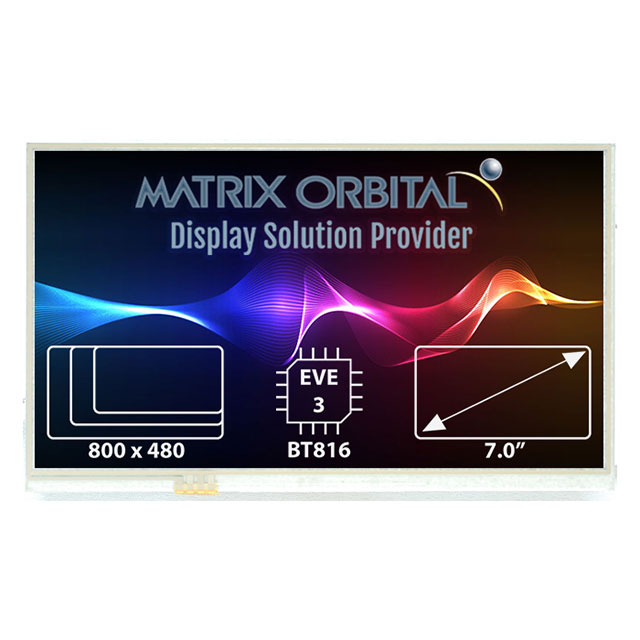

EVE3-70A-BLM-TPR-F32
ActiveMatrix Orbital
LCD DISPLAY TFT 7" 800X480
Deep-Dive with AI
Search across all available documentation for this part.
EVE3-70A-BLM-TPR-F32
ActiveMatrix Orbital
LCD DISPLAY TFT 7" 800X480
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVE3-70A-BLM-TPR-F32 |
|---|---|
| Backlight | LED - White |
| Diagonal Screen Size | 177.8 mm |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch [x] | 0.2 mm |
| Dot Pitch [y] | 0.18 mm |
| Dot Pixels | WVGA |
| Dot Pixels [x] | 800 |
| Dot Pixels [y] | 480 |
| Graphics Color | Green, Red, Blue |
| Interface | SPI |
| Touchscreen | Resistive |
| Viewing Area [x] | 153.84 mm |
| Viewing Area [y] | 85.63 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 100.19 | |
Description
General part information
EVE3-70 Series
Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color SPI 7" (177.80mm) 800 x 480 (WVGA)
Documents
Technical documentation and resources
