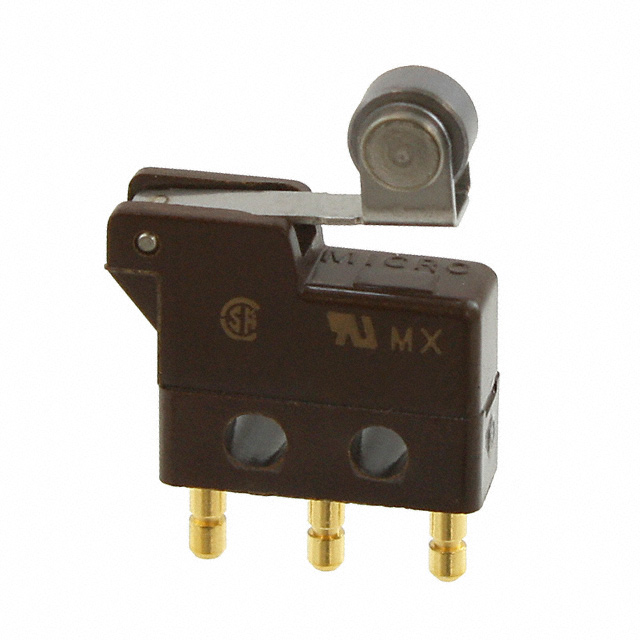

311SX64-H58
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 311SX64-H58 |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Differential Travel | 0.015 in |
| Differential Travel | 0.38 mm |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 67 gf |
| Operating Position | 14.15 mm |
| Operating Position | 0.557 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overtravel | 0.25 mm |
| Overtravel | 0.01 in |
| Pretravel | 0.05 in |
| Pretravel | 1.27 mm |
| Release Force | 11 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.058 in (Round) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.74 | |
| 10 | $ 31.27 | |||
| 25 | $ 29.02 | |||
| 50 | $ 27.42 | |||
| 100 | $ 25.91 | |||
| 250 | $ 24.23 | |||
Description
General part information
311SX64 Series
Switch SPDT Chassis Mount
