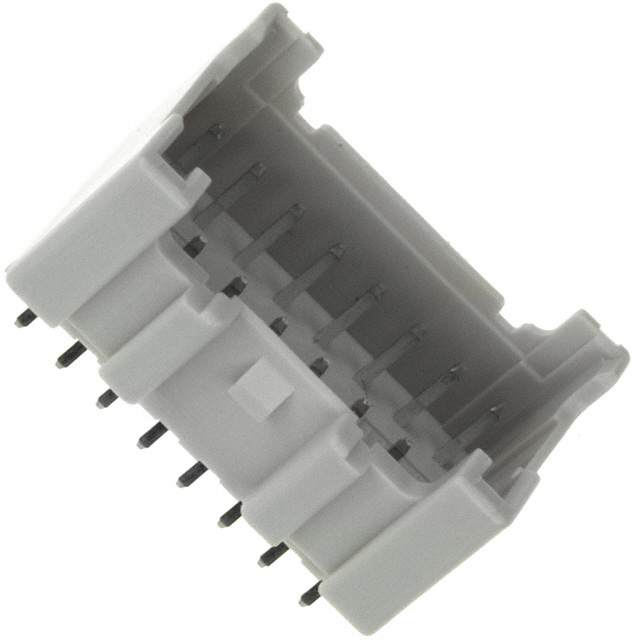

B16B-PNDZS-1

Active

JST Sales America Inc.

CONN HEADER VERT 16POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 16POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B16B-PNDZS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Ivory
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	12.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	5 mm
Row Spacing - Mating	0.197 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Shrouding	Contact Length - Post	Contact Length - Post [x]	Contact Material	Style	Material Flammability Rating	Contact Shape	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Number of Positions	Features	Insulation Color	Current Rating (Amps)	Number of Positions Loaded	Connector Type	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Mounting Type	Insulation Material	Voltage Rating	Mated Stacking Heights	Row Spacing - Mating	Row Spacing - Mating	Fastening Type
JST Sales America Inc. B16B-PNDZS-1	0.079 in	2 mm	Male Pin	Shrouded - 4 Wall	3.2 mm	0.126 in	Copper Alloy	Board to Cable/Wire	UL94 V-0	Square	Solder	-25 °C	85 °C	2	16	Board Guide	Ivory	3 A	All	Header	Tin	9.91 mm	0.39 in	Through Hole	Polyamide (PA66) Nylon 6/6 Glass Filled	250 VDC	12.9 mm	5 mm	0.197 in	Locking Ramp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 16 position 0.079" (2.00mm)
