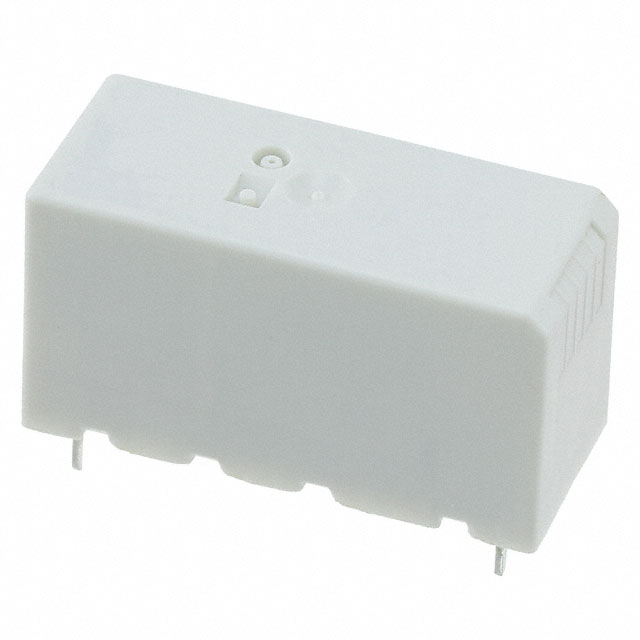

RZ01-1A4-D009

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 12A 9V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 12A 9V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Resistance	Load - Max Switching	Contact Form	Approval Agency	Must Release Voltage	Relay Type	Must Operate Voltage	Coil Current	Coil Insulation	Release Time	Contact Rating (Current)	Termination Style	Coil Type	Mounting Type	Switching Voltage [Max]	Contact Material	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage
TE Connectivity Potter & Brumfield Relays 1415899-2	90 Ohms	4800 VA	SPST-NO (1 Form A)	CQC cURus VDE	0.6 VDC	General Purpose	4.2 VDC	66.7 mA	Class F	6 ms	12 A	PC Pin	Non Latching	Through Hole	400 VAC	Silver Nickel (AgNi)	8 ms	85 °C	-40 °C
TE Connectivity Potter & Brumfield Relays RZ01-1A4-D009	200 Ohms	4800 VA	SPST-NO (1 Form A)	CQC cURus VDE	0.9 VDC	General Purpose	6.3 VDC	44.4 mA	Class F	6 ms	12 A	PC Pin	Non Latching	Through Hole	400 VAC	Silver Nickel (AgNi)	8 ms	85 °C	-40 °C	9 VDC
TE Connectivity Potter & Brumfield Relays RZ01-1A4-D012	360 Ohms	4800 VA	SPST-NO (1 Form A)	CQC cURus VDE	1.2 VDC	General Purpose	8.4 VDC	33.3 mA	Class F	6 ms	12 A	PC Pin	Non Latching	Through Hole	400 VAC	Silver Nickel (AgNi)	8 ms	85 °C	-40 °C	12 VDC
TE Connectivity Potter & Brumfield Relays RZ01-1A4-D024	1440 Ohms	4800 VA	SPST-NO (1 Form A)	CQC cURus VDE	2.4 VDC	General Purpose	16.8 VDC	16.7 mA	Class F	6 ms	12 A	PC Pin	Non Latching	Through Hole	400 VAC	Silver Nickel (AgNi)	8 ms	85 °C	-40 °C	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole
