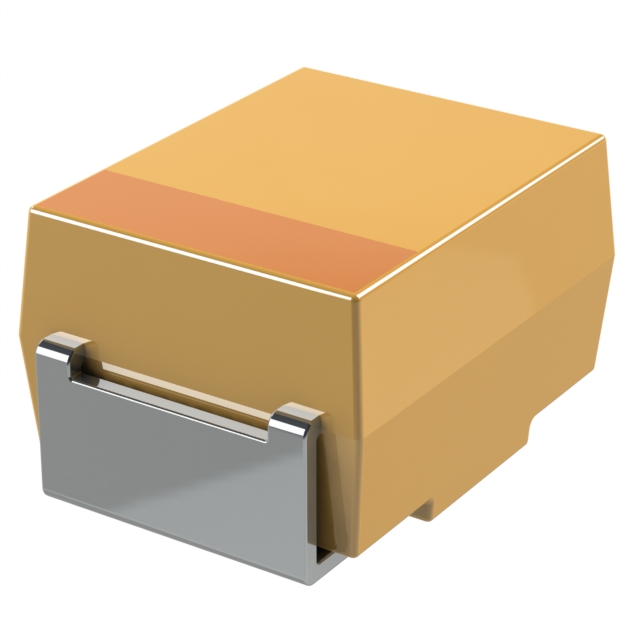

TPSB225K025R1200
ActiveKyocera AVX
CAPACITOR: TANTALUM; LOW ESR; 2.2UF; 25VDC; SMD; B; 1411; ±10%; TPS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPSB225K025R1200
ActiveKyocera AVX
CAPACITOR: TANTALUM; LOW ESR; 2.2UF; 25VDC; SMD; B; 1411; ±10%; TPS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPSB225K025R1200 |
|---|---|
| Capacitance | 2.2 µF |
| ESR (Equivalent Series Resistance) | 1.2 Ohm |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | B |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1210, 1411 (3528 Metric) |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 25 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.95 | |
| 10 | $ 0.61 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.34 | |||
| Digi-Reel® | 1 | $ 0.95 | ||
| 10 | $ 0.61 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.34 | |||
| Tape & Reel (TR) | 2000 | $ 0.32 | ||
| 4000 | $ 0.30 | |||
| 6000 | $ 0.30 | |||
| 10000 | $ 0.29 | |||
| 14000 | $ 0.28 | |||
| 20000 | $ 0.28 | |||
Description
General part information
tps Series
2.2 µF Molded Tantalum Capacitors 25 V 1411 (3528 Metric), 1210 1.2Ohm @ 100kHz
