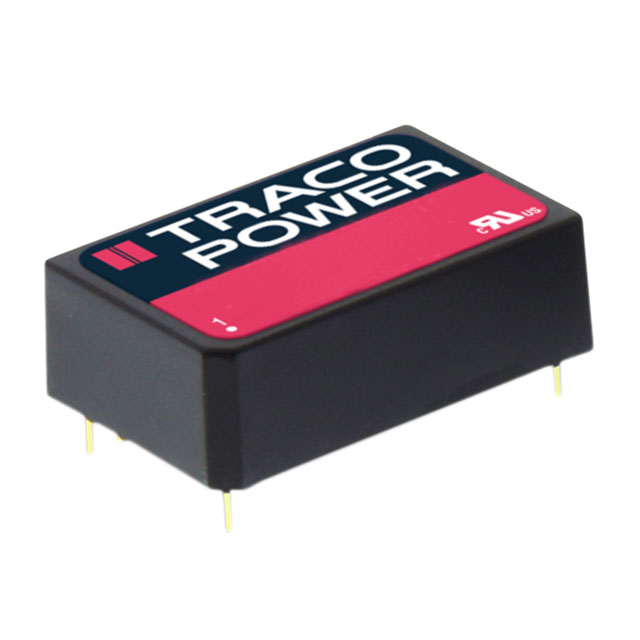

THP 3-4812

Active

Traco Power

DC DC CONVERTER 12V 3W

Search across all available documentation for this part.

Active

Traco Power

DC DC CONVERTER 12V 3W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Voltage - Isolation	Voltage - Output 1	Number of Outputs	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Voltage - Output 2	Features	Mounting Type	Type	Efficiency	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power THP 3-2423	24-DIP Module 5 Leads	3 W	100 mA	100 mA	3000 V	15 V	2	ITE (Commercial) Medical	85 °C	-40 °C	20.3 mm	10.5 mm	31.8 mm	1.25 "	0.8 "	0.41 "	9 V	-15 V	SCP	Through Hole	Isolated Module	83 %
Traco Power THP 3-4823	24-DIP Module 6 Leads	3 W	100 mA	100 mA	3000 V	15 V	2	ITE (Commercial) Medical	85 °C	-40 °C	20.3 mm	10.5 mm	31.8 mm	1.25 "	0.8 "	0.41 "	18 V	-15 V	SCP	Through Hole	Isolated Module	83 %	80 V
Traco Power THP 3-4822	24-DIP Module 5 Leads	3 W	125 mA		3000 V	12 V	2	ITE (Commercial) Medical	85 °C	-40 °C	20.3 mm	10.5 mm	31.8 mm	1.25 "	0.8 "	0.41 "	18 V	-12 V	SCP	Through Hole	Isolated Module	83 %	80 V	125 mA
Traco Power THP 3-4812	24-DIP Module 5 Leads	3 W			3000 V	12 V	1	ITE (Commercial) Medical	85 °C	-40 °C	20.3 mm	10.5 mm	31.8 mm	1.25 "	0.8 "	0.41 "	18 V		SCP	Through Hole	Isolated Module	83 %	80 V		250 mA
Traco Power THP 3-4811	24-DIP Module 5 Leads	3 W			3000 V	5 V	1	ITE (Commercial) Medical	85 °C	-40 °C	20.3 mm	10.5 mm	31.8 mm	1.25 "	0.8 "	0.41 "	18 V		SCP	Through Hole	Isolated Module	78 %	80 V		600 mA
