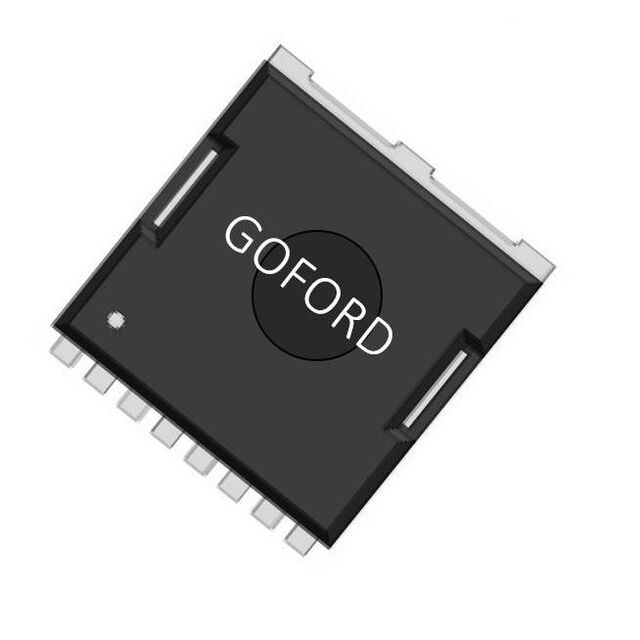

GT023N10TL
ActiveGoford Semiconductor
MOSFET N-CH 100V 330A TOLL-8
Deep-Dive with AI
Search across all available documentation for this part.
GT023N10TL
ActiveGoford Semiconductor
MOSFET N-CH 100V 330A TOLL-8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GT023N10TL |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 330 A |
| Drain to Source Voltage (Vdss) | 100 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 121 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 8058 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C, 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerSFN |
| Power Dissipation (Max) [Max] | 395 W |
| Rds On (Max) @ Id, Vgs | 1.9 mOhm |
| Supplier Device Package | Toll |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 3.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.52 | |
| 10 | $ 2.96 | |||
| 100 | $ 2.39 | |||
| 500 | $ 2.13 | |||
| 1000 | $ 1.82 | |||
| Digi-Reel® | 1 | $ 3.52 | ||
| 10 | $ 2.96 | |||
| 100 | $ 2.39 | |||
| 500 | $ 2.13 | |||
| 1000 | $ 1.82 | |||
| Tape & Reel (TR) | 2000 | $ 1.43 | ||
| 2000 | $ 1.71 | |||
| 6000 | $ 1.65 | |||
| 14000 | $ 1.32 | |||
| 28000 | $ 1.18 | |||
Description
General part information
GT023N10TL
N-Channel 100 V 330A (Tc) 395W (Tc) Surface Mount TOLL
