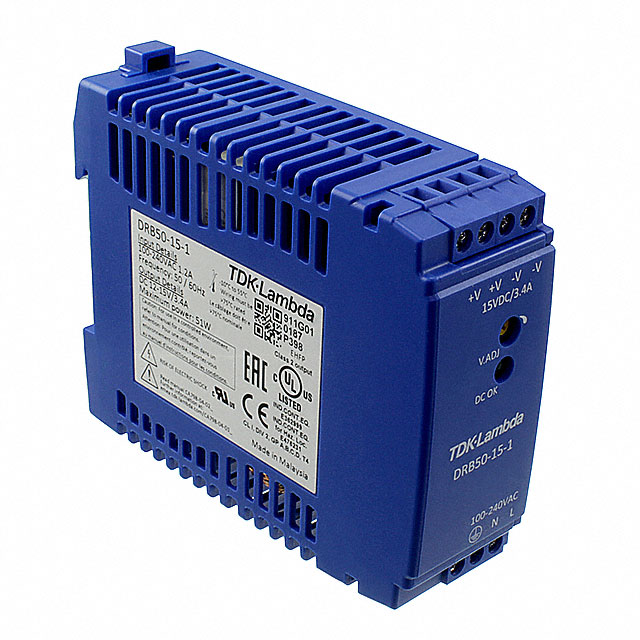

DRB50-15-1

Active

TDK-LAMBDA

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 51 W, 15 V, 3.4 A

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 51 W, 15 V, 3.4 A

Technical Specifications

Parameters and characteristics for this part

Specification	DRB50-15-1

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CE, cURus, cULus
Current - Output (Max) [Max]	3.4 A
DC Voltage - Input (Max) [Max]	373 V
DC Voltage - Input (Min) [Min]	120 V
Efficiency	90 %
Features	Adjustable Output, Universal Input
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	51 W
Size / Dimension [x]	89.9 mm
Size / Dimension [x]	3.54 in
Size / Dimension [y]	1.18 in
Size / Dimension [y]	30 mm
Size / Dimension [z]	74.9 mm
Size / Dimension [z]	2.95 "
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

Part	Voltage - Output 1	DC Voltage - Input (Min) [Min]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	DC Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Input Type	Features	Approval Agency	Current - Output (Max) [Max]	Number of Outputs	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Applications	Size / Dimension [z]	Size / Dimension [y]
TDK-LAMBDA DRB50-15-1	15 V	120 V	85 VAC	264 VAC	373 V	-20 °C	70 °C	90 %	AC or DC	Adjustable Output Universal Input	CE cULus cURus	3.4 A	1	3000 V	1.18 in	74.9 mm	2.95 "	89.9 mm	3.54 in	30 mm	51 W	Hazardous Locations Industrial ITE (Commercial)
TDK-LAMBDA DRB50-24-1	24 V	120 V	85 VAC	264 VAC	373 V	-20 °C	70 °C	90 %	AC or DC	Adjustable Output Universal Input	CE cULus cURus	2.1 A	1	3000 V	1.18 in		2.95 "	90 mm	3.54 in		50 W	Hazardous Locations Industrial ITE (Commercial)	75 mm	30 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.51
Newark	Each	1	$ 48.51

General part information

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 51 W, 15 V, 3.4 A

Technical documentation and resources
