AB6M-M1P-B

Active

IDEC

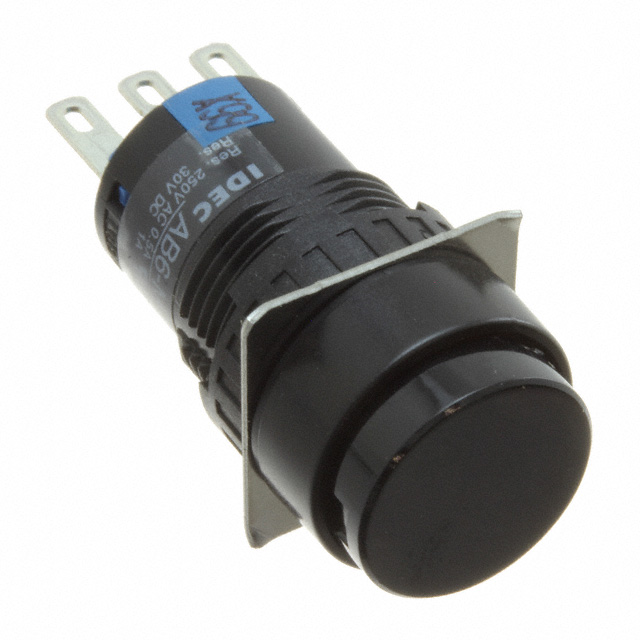

INDUSTRIAL PUSHBUTTON SWITCH, A6 SERIES, 16 MM, SPDT, MOMENTARY, ROUND, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AB6M-M1P-B

Active

IDEC

INDUSTRIAL PUSHBUTTON SWITCH, A6 SERIES, 16 MM, SPDT, MOMENTARY, ROUND, BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AB6M-M1P-B

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Black
Electrical Life	100000 Cycles
Ingress Protection	IP65
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	24 V

AB6M Series

Part	Circuit	Mechanical Life	Switch Function	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Termination Style	Termination Style	Electrical Life	Voltage Rating - DC	Voltage Rating - AC	Type	Actuator Type	Actuator Marking	Mounting Type	Ingress Protection
IDEC AB6M-M1P-B	SPDT	1000000 Cycles	On-Mom	16.2 mm	Black	55 °C	-25 °C	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	24 V	120 V	Standard	Button Round	No Marking	Panel Mount Front	IP65

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.49
		5	$ 16.13
		10	$ 15.21
		25	$ 14.07
		50	$ 13.26
		100	$ 12.50
Newark	Each	1	$ 14.93
		5	$ 13.74
		10	$ 12.70
		25	$ 11.50

Description

General part information

AB6M Series

The AB6M-M1P-B is a 18mm single-pole double-throw (SPDT) black Non-illuminated Pushbutton with momentary operation, round head and LED illumination. The assembled AB6-series with gold-clad silver contacts for reliable low level switching and a light duty operating force.
