SLA4031

Active

Sanken Electric USA Inc.

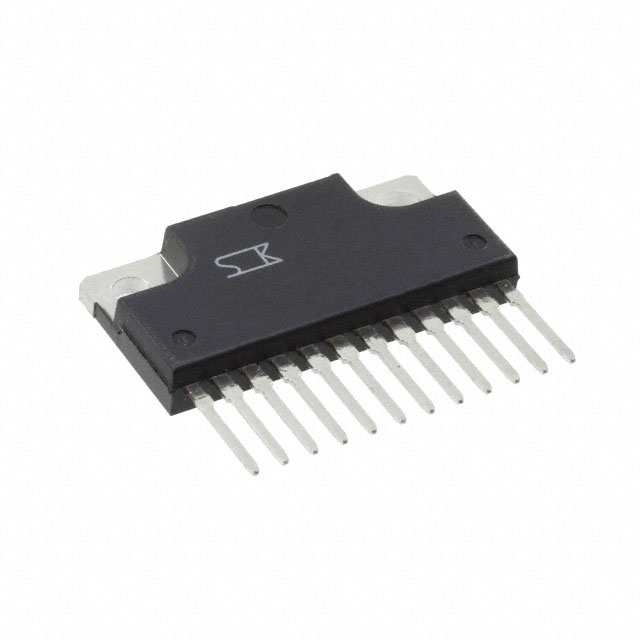

TRANS 4NPN DARL 120V 4A 12SIP

Search across all available documentation for this part.

Active

Sanken Electric USA Inc.

TRANS 4NPN DARL 120V 4A 12SIP

Technical Specifications

Parameters and characteristics for this part

Specification	SLA4031

Current - Collector (Ic) (Max) [Max]	4 A
Current - Collector Cutoff (Max) [Max]	10 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	2000
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	12-SIP Exposed Tab
Power - Max [Max]	5 W
Supplier Device Package	12-SIP
Transistor Type	4 NPN Darlington (Quad)
Vce Saturation (Max) @ Ib, Ic	1.5 V
Voltage - Collector Emitter Breakdown (Max)	120 V

Part	Current - Collector (Ic) (Max) [Max]	Mounting Type	Supplier Device Package	Package / Case	Voltage - Collector Emitter Breakdown (Max)	Operating Temperature	Transistor Type	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic	Current - Collector Cutoff (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	DC Current Gain (hFE) (Min) @ Ic, Vce	Voltage - Collector Emitter Breakdown (Max) [Max]
Sanken Electric USA Inc. SLA4036	2 A	Through Hole	15-ZIP	15-SIP Exposed Tab Formed Leads	120 V	150 °C
Sanken Electric USA Inc. SLA4061	5 A	Through Hole	12-SIP	12-SIP Exposed Tab	120 V	150 °C	4 NPN Darlington (Quad)	5 W	1.5 V	10 µA	2000
Sanken Electric USA Inc. SLA4030	4 A	Through Hole	12-SIP	12-SIP Exposed Tab		150 °C	4 NPN Darlington (Quad)	5 W	1.5 V	10 µA		2000 hFE	100 V
Sanken Electric USA Inc. SLA4051	2 A	Through Hole	21-SIP w/fin	21-SSIP Exposed Tab	120 V	150 °C	9 NPN Darlington
Sanken Electric USA Inc. SLA4041	3 A	Through Hole	12-SIP	12-SIP Exposed Tab		150 °C	4 NPN Darlington (Quad)	5 W	1.5 V	10 µA	1000		200 V
Sanken Electric USA Inc. SLA4031	4 A	Through Hole	12-SIP	12-SIP Exposed Tab	120 V	150 °C	4 NPN Darlington (Quad)	5 W	1.5 V	10 µA	2000
Sanken Electric USA Inc. SLA4052	3 A	Through Hole	21-SIP w/fin	21-SSIP Exposed Tab	120 V	150 °C	9 NPN Darlington

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	250	$ 2.88

General part information

Bipolar (BJT) Transistor Array 4 NPN Darlington (Quad) 120V 4A 5W Through Hole 12-SIP
