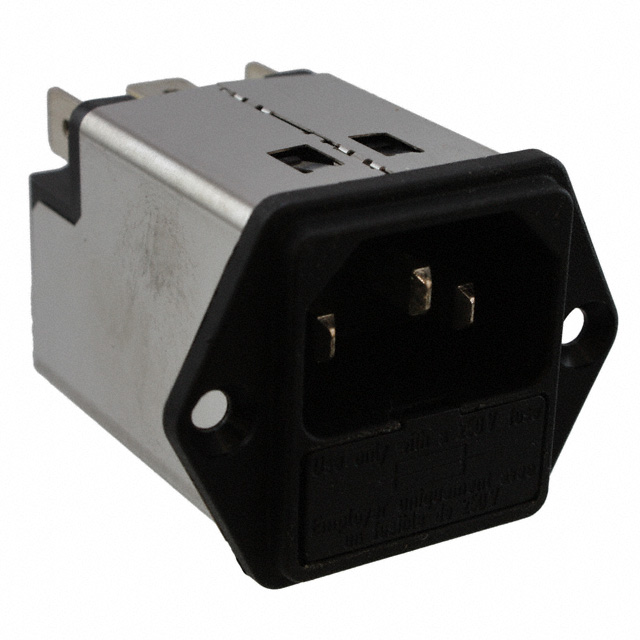

5200.0123.1

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	5200.0123.1

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	1 A
Current Rating - Filter	1 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	32 mm
Panel Cutout Dimensions [y]	29 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Mounting Type	Current Rating - Appliance Inlet	Approval Agency	Fuse Holder, Drawer	Termination	Termination	Termination	Current Rating - Filter	Ingress Protection	Voltage Rating - Appliance Inlet	Connector Style	Accomodates a Fuse	Material Flammability Rating	Filter Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Type
SCHURTER Inc. 5200.0123.1	Flange Panel Mount	1 A	cULus ENEC	Fuse Holder	0.25 in	6.3 mm	Quick Connect	1 A	IP40	250 VAC	IEC 320-C14		UL94 V-0	Filtered (EMI RFI) - Commercial	32 mm	29 mm	Receptacle Male Blades - Module
SCHURTER Inc. 5200.0123.3	Flange Panel Mount	1 A	cULus ENEC	Fuse Holder	0.25 in	6.3 mm	Quick Connect	1 A	IP40	250 VAC	IEC 320-C14		UL94 V-0	Filtered (EMI RFI) - Commercial Medical	32 mm	29 mm	Receptacle Male Blades - Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
