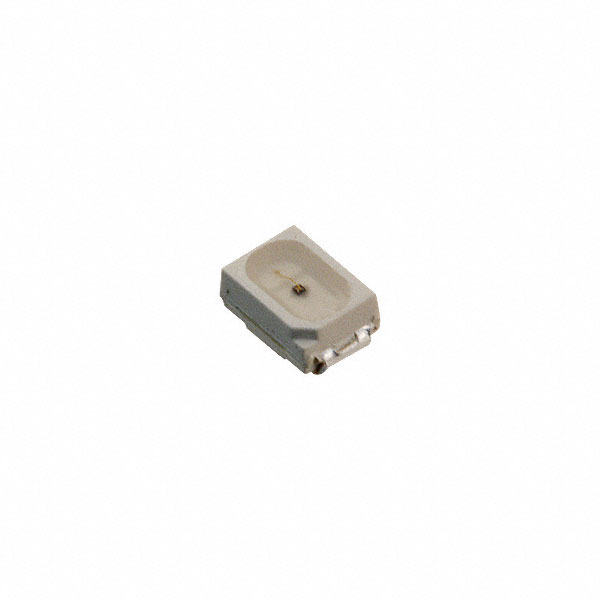

SML-LX23SYC-TR

Active

Lumex Opto/Components Inc.

LED YELLOW CLEAR SMD

Deep-Dive with AI

Search across all available documentation for this part.

SML-LX23SYC-TR

Active

Lumex Opto/Components Inc.

LED YELLOW CLEAR SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LX23SYC-TR

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1.4 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1.4 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	200 mcd
Mounting Type	Surface Mount
Package / Case	2-SMD, J-Lead
Size / Dimension [x]	3 mm
Size / Dimension [y]	2 mm
Supplier Device Package	SMD
Viewing Angle [custom]	90 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	590 nm

SML-LX23 Series

Part	Viewing Angle [custom]	Lens Transparency	Wavelength - Peak	Lens Style	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Current - Test	Height (Max) [Max] [z]	Lens Color	Color	Configuration	Millicandela Rating	Supplier Device Package	Lens Size [y]	Lens Size [x]	Viewing Angle
Lumex Opto/Components Inc. SML-LX23SIC-TR	90 °	Clear	636 nm	Rectangle with Flat Top	2-SMD J-Lead	Surface Mount	2 mm	3 mm	2 V	20 mA	1.4 mm	Colorless	Red	Standard	300 mcd	SMD	1.4 mm	2 mm
Lumex Opto/Components Inc. SML-LX23UPGC-TR	90 °	Clear	525 nm	Rectangle with Flat Top	2-SMD J-Lead	Surface Mount	2 mm	3 mm	3.5 V	20 mA	1.4 mm	Colorless	Green	Standard	150 mcd	SMD	1.4 mm	2 mm
Lumex Opto/Components Inc. SML-LX23SRC-TR	90 °	Clear	660 nm	Rectangle with Flat Top	2-SMD J-Lead	Surface Mount	2 mm	3 mm	1.7 V	20 mA	1.4 mm	Colorless	Red	Standard	100 mcd	SMD	1.4 mm	2 mm
Lumex Opto/Components Inc. SML-LX23UWC-TR		Clear	550 nm	Rectangle with Flat Top	2-SMD J-Lead	Surface Mount	2 mm	3 mm	3.5 V	20 mA	1.4 mm	Colorless	White	Standard	150 mcd	SMD	1.4 mm	2 mm	120 °
Lumex Opto/Components Inc. SML-LX23SYC-TR	90 °	Clear	590 nm	Rectangle with Flat Top	2-SMD J-Lead	Surface Mount	2 mm	3 mm	2 V	20 mA	1.4 mm	Colorless	Yellow	Standard	200 mcd	SMD	1.4 mm	2 mm
Lumex Opto/Components Inc. SML-LX23IC-TR	90 °	Clear	635 nm	Rectangle with Flat Top	2-SMD J-Lead	Surface Mount	2 mm	3 mm	2 V	20 mA	1.4 mm	Colorless	Red	Standard	20 mcd	SMD	1.4 mm	2 mm
Lumex Opto/Components Inc. SML-LX23SUGC-TR	90 °	Clear		Rectangle with Flat Top	2-SMD J-Lead	Surface Mount	2 mm	3 mm	2.2 V	20 mA	1.4 mm	Colorless	Green	Standard	80 mcd	SMD	1.4 mm	2 mm
Lumex Opto/Components Inc. SML-LX23SBC-TR	90 °	Clear	430 nm	Rectangle with Flat Top	2-SMD J-Lead	Surface Mount	2 mm	3 mm	3.8 V	20 mA	1.4 mm	Colorless	Blue	Standard	15 mcd	SMD	1.4 mm	2 mm
Lumex Opto/Components Inc. SML-LX23USBC-TR	90 °	Clear		Rectangle with Flat Top	2-SMD	Surface Mount	2 mm	3 mm	3.5 V	20 mA	1.4 mm	Colorless	Blue	Standard	60 mcd	SMD	1.4 mm	2 mm
Lumex Opto/Components Inc. SML-LX23YC-TR	90 °	Clear	585 nm	Rectangle with Flat Top	2-SMD J-Lead	Surface Mount	2 mm	3 mm	2.1 V	20 mA	1.4 mm	Colorless	Yellow	Standard	20 mcd	SMD	1.4 mm	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.78
		10	$ 0.51
		100	$ 0.33
		1000	$ 0.26
	Digi-Reel®	1	$ 0.78
		10	$ 0.51
		100	$ 0.33
		1000	$ 0.26
	Tape & Reel (TR)	2000	$ 0.24
		6000	$ 0.24
		10000	$ 0.23

Description

General part information

SML-LX23 Series

Yellow LED Indication - Discrete 2V 2-SMD, J-Lead
