Technical Specifications
Parameters and characteristics for this part
| Specification | 4303.1182 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | CCC, UL, CSA, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Features | Voltage Selector |
| Filter Type | Unfiltered - Commercial |
| Fuse Holder, Drawer | Drawer Sold Separate |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 27.6 mm |
| Panel Cutout Dimensions [y] | 50 mm |
| Panel Thickness [custom] | 0.059 in |
| Panel Thickness [custom] | 1.5 mm |
| Termination | 0.189 ", 4.8 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
KEC Series

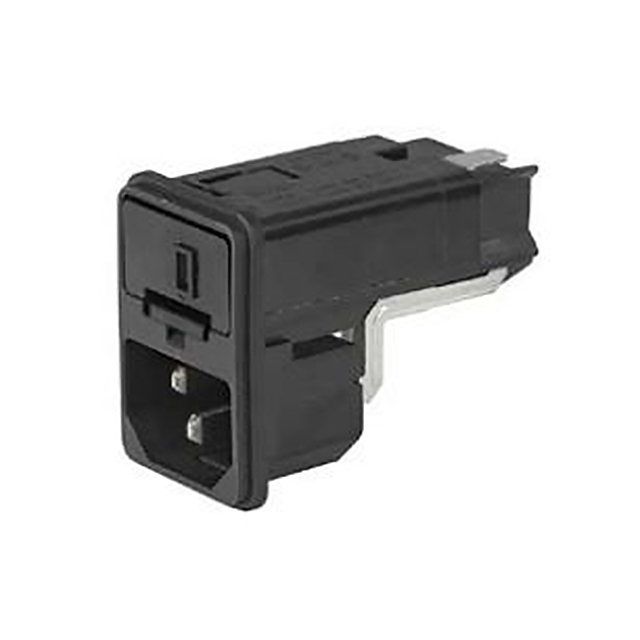

AC Power Entry Modules KEC PWR ENTRY MODUL 10A
Documents
Technical documentation and resources
