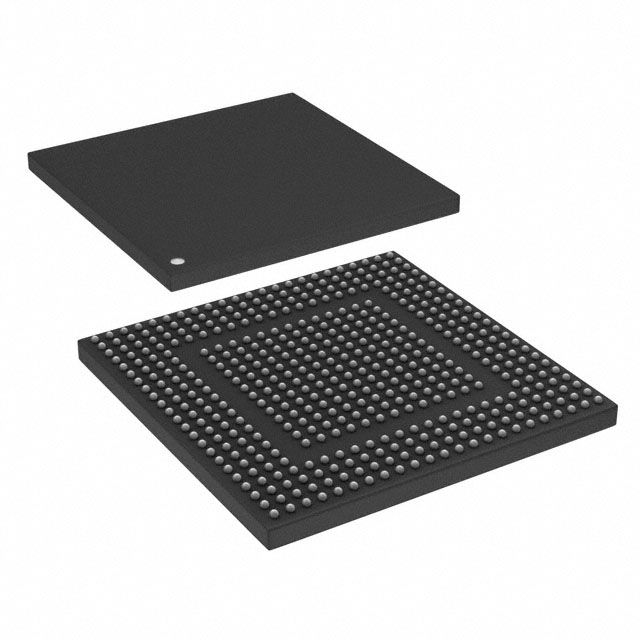

SPC5674KAVMS2R

Active

Freescale Semiconductor - NXP

NXP 32-BIT MCU, DUAL POWER ARCH, 1.5MB FLASH 180MHZ, -40/+105DEGC, AUTOMOTIVE QUAL, MAPBGA 473/ REEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Datasheet

SPC5674KAVMS2R

Active

Freescale Semiconductor - NXP

NXP 32-BIT MCU, DUAL POWER ARCH, 1.5MB FLASH 180MHZ, -40/+105DEGC, AUTOMOTIVE QUAL, MAPBGA 473/ REEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsProduct Change Notice EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPC5674KAVMS2R

Connectivity	CANbus, FlexRay, EBI/EMI, LINbus, I2C, Ethernet, SPI
Core Processor	e200z7d
Core Size [custom]	32-Bit Dual-Core
Data Converters [custom]	34
Data Converters [custom]	12 b
EEPROM Size	64 K
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	473-LFBGA
Peripherals	WDT, DMA, PWM, POR
Program Memory Size	1.5 MB
Program Memory Type	FLASH
RAM Size	384 K
Speed	180 MHz
Supplier Device Package	473-MAPBGA (19x19)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	1.14 V

SPC5674 Series

Part	Mounting Type	Package / Case	Program Memory Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	EEPROM Size	Core Processor	Connectivity	Data Converters [custom]	Data Converters [custom]	Program Memory Type	Oscillator Type	Operating Temperature [Min]	Operating Temperature [Max]	RAM Size	Speed	Core Size [custom]	Peripherals	Supplier Device Package	Number of I/O	Core Size	Data Converters [custom]	Data Converters
Freescale Semiconductor - NXP SPC5674KFF0MMS2R	Surface Mount	473-LFBGA	1.5 MB	1.14 V	5.5 V	64 K	e200z7d	CANbus EBI/EMI Ethernet FlexRay I2C LINbus SPI	34	12 b	FLASH	Internal	-40 °C	125 °C	384 K	180 MHz	32-Bit Dual-Core	DMA POR PWM WDT	473-MAPBGA (19x19)
Freescale Semiconductor - NXP SPC5674FF3MVR3	Surface Mount	416-BBGA	4 MB	1.08 V	5.25 V		e200z7	CANbus SCI SPI	64		FLASH	External	-40 °C	125 °C	256 K	264 MHz		DMA POR PWM	416-PBGA (27x27)	32	32-Bit Single-Core	12 b
Freescale Semiconductor - NXP SPC5674FF3MVV3R	Surface Mount	516-BBGA	4 MB	1.08 V	5.25 V		e200z7	CANbus EBI/EMI SCI SPI	64		FLASH	External	-40 °C	125 °C	256 K	264 MHz		DMA POR PWM	516-PBGA (27x27)	32	32-Bit Single-Core	12 b
Freescale Semiconductor - NXP SPC5674FAMVR3	Surface Mount	416-BBGA	4 MB	1.08 V	5.25 V		e200z7	CANbus SCI SPI	64		FLASH	External	-40 °C	125 °C	256 K	264 MHz		DMA POR PWM	416-PBGA (27x27)	32	32-Bit Single-Core	12 b
Freescale Semiconductor - NXP SPC5674KAVMS2R	Surface Mount	473-LFBGA	1.5 MB	1.14 V	5.5 V	64 K	e200z7d	CANbus EBI/EMI Ethernet FlexRay I2C LINbus SPI	34	12 b	FLASH	Internal	-40 °C	105 °C	384 K	180 MHz	32-Bit Dual-Core	DMA POR PWM WDT	473-MAPBGA (19x19)
Freescale Semiconductor - NXP SPC5674FAMVV3R	Surface Mount	516-BBGA	4 MB	1.08 V	5.25 V		e200z7	CANbus EBI/EMI SCI SPI	64		FLASH	External	-40 °C	105 °C	256 K	264 MHz	32-Bit Dual-Core	DMA POR PWM	516-PBGA (27x27)	32		12 b
Freescale Semiconductor - NXP SPC5674FF3MVY3	Surface Mount	516-BBGA	4 MB	1.08 V	5.25 V		e200z7	CANbus EBI/EMI SCI SPI	64		FLASH	External	-40 °C	125 °C	256 K	264 MHz		DMA POR PWM	516-PBGA (27x27)	32	32-Bit Single-Core	12 b
Freescale Semiconductor - NXP SPC5674KAVMM2	Surface Mount	257-LFBGA	1.5 MB	1.14 V	5.5 V	64 K	e200z7d	CANbus EBI/EMI Ethernet FlexRay I2C LINbus SPI			FLASH	Internal	-40 °C	105 °C	384 K	180 MHz	32-Bit Dual-Core	DMA POR PWM WDT	257-LFBGA (14x14)				22x12b
Freescale Semiconductor - NXP SPC5674KFF0VMS2R	Surface Mount	473-LFBGA	1.5 MB	1.14 V	5.5 V	64 K	e200z7d	CANbus EBI/EMI Ethernet FlexRay I2C LINbus SPI	34	12 b	FLASH	Internal	-40 °C	105 °C	384 K	180 MHz	32-Bit Dual-Core	DMA POR PWM WDT	473-MAPBGA (19x19)
Freescale Semiconductor - NXP SPC5674KAVMS2	Surface Mount	473-LFBGA	1.5 MB	1.14 V	5.5 V	64 K	e200z7d	CANbus EBI/EMI Ethernet FlexRay I2C LINbus SPI	34	12 b	FLASH	Internal	-40 °C	105 °C	384 K	180 MHz	32-Bit Dual-Core	DMA POR PWM WDT	473-MAPBGA (19x19)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	750	$ 32.72
Newark	Each	100	$ 34.29

Description

General part information

SPC5674 Series

e200z7d MPC56xx Qorivva Microcontroller IC 32-Bit Dual-Core 180MHz 1.5MB (1.5M x 8) FLASH 473-MAPBGA (19x19)

Documents

Technical documentation and resources

Product Change Notice EN

Datasheet
