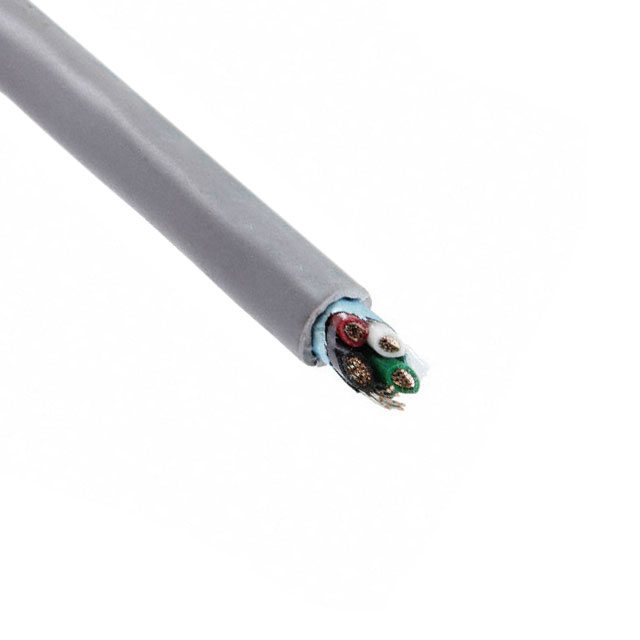

M13244 SL199

Active

ALPHA WIRE

CABLE 4COND 18AWG SHLD 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 18AWG SHLD 3000'

Technical Specifications

Parameters and characteristics for this part

Specification	M13244 SL199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.249 in
Jacket (Insulation) Diameter [diameter]	6.32 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length	914.4 m
Length	3000 ft
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket (Insulation) Material	Shield Type	Jacket Color	Shield Coverage	Conductor Material	Wire Gauge	Features	Ratings	Length	Length	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Number of Conductors	Voltage	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
ALPHA WIRE M13244 SL001	Poly-Vinyl Chloride (PVC)	Foil	Slate	100 %	Copper Tinned	18 AWG	Drain Wire Rip Cord	UL Style 2464	1000 ft	304.8 m	Aluminum	-20 C	80 C	Poly-Vinyl Chloride (PVC)	4	300 V	Multi-Conductor	0.889 mm	0.035 in	0.249 in	6.32 mm	19	30 AWG
ALPHA WIRE M13244 SL199	Poly-Vinyl Chloride (PVC)	Foil	Slate	100 %	Copper Tinned	18 AWG	Drain Wire Rip Cord	UL Style 2464	3000 ft	914.4 m	Aluminum	-20 C	80 C	Poly-Vinyl Chloride (PVC)	4	300 V	Multi-Conductor	0.889 mm	0.035 in	0.249 in	6.32 mm	19	30 AWG
ALPHA WIRE M13244 SL002	Poly-Vinyl Chloride (PVC)	Foil	Slate	100 %	Copper Tinned	18 AWG	Drain Wire Rip Cord	UL Style 2464			Aluminum	-20 C	80 C	Poly-Vinyl Chloride (PVC)	4	300 V	Multi-Conductor	0.889 mm	0.035 in	0.249 in	6.32 mm	19	30 AWG	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.27

General part information

4 Conductor Multi-Conductor Cable Slate 18 AWG Foil 3000' (914.4m)
