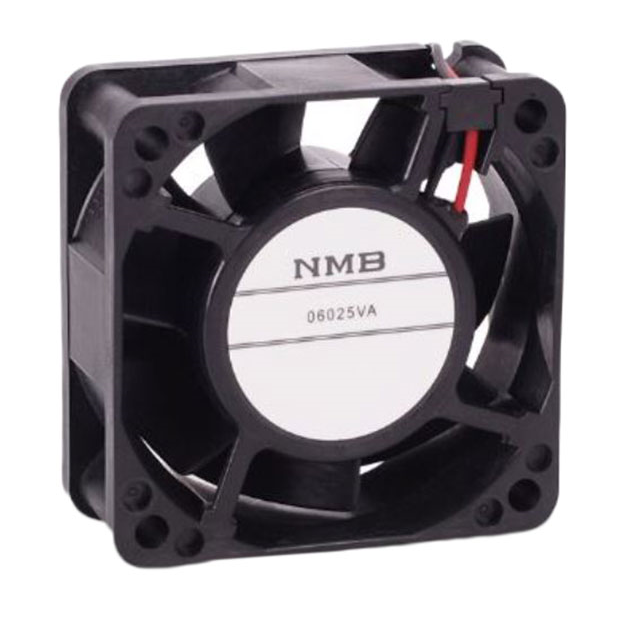

06025VA-12Q-AU-03

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 60 MM, 25 MM, BALL BEARING, 39.2 CFM

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 60 MM, 25 MM, BALL BEARING, 39.2 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	06025VA-12Q-AU-03

Air Flow	39.2 CFM
Air Flow	1.1 m³/min
Approval Agency	cULus, VDE
Bearing Type	Ball
Current Rating (Amps)	0.5 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	54 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	6 W
RPM	9200 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	244 Pa
Static Pressure	0.98 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Width [y]	25 mm

Part	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	RPM	Termination	Fan Type	Features	Material - Frame	Material - Blade	Voltage - Rated	Static Pressure	Static Pressure	Width [y]	Noise	Bearing Type
NMB TECHNOLOGIES 06025VA-12Q-AU-03	39.2 CFM	1.1 m³/min	13.2 VDC	7 V	6 W	70 °C	70 °C	-10 °C	-10 °C	40000 Hrs	cULus VDE	60 mm	60 mm	0.5 A	9200 RPM	4 Wire Leads	Tubeaxial	Auto Restart PWM Control Speed Sensor (Tach)	Plastic	Plastic	12 VDC	244 Pa	0.98 in H2O	25 mm	54 dB	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 39.2 CFM (1.10m³/min) 4 Wire Leads
