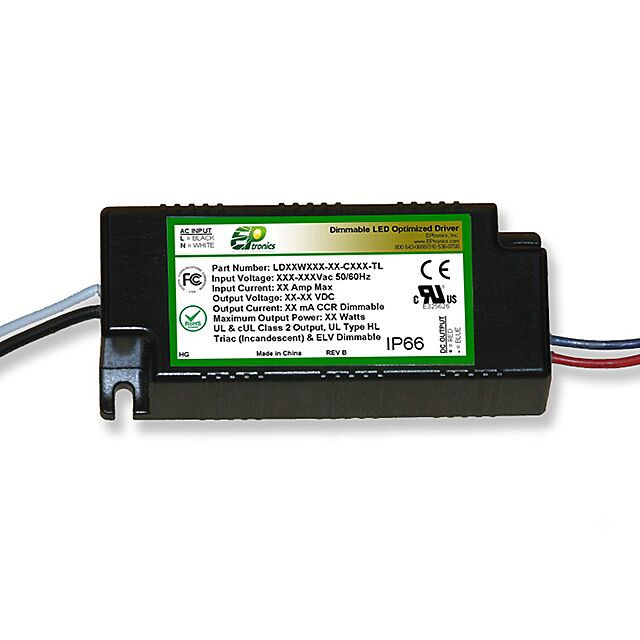

LD16W120-46-C0350-TL
ActiveEPtronics, Inc.
28~46V@350MA, PHASE DIMMING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LD16W120-46-C0350-TL
ActiveEPtronics, Inc.
28~46V@350MA, PHASE DIMMING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LD16W120-46-C0350-TL |
|---|---|
| Approval Agency | CE, FCC, cURus |
| Current - Output (Max) [Max] | 350 mA |
| Dimming | ELV, TRIAC |
| Efficiency | 85 % |
| Features | SCP, OCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 16.1 W |
| Ratings | IP66 |
| Size / Dimension [x] | 3.74 " |
| Size / Dimension [x] | 95 mm |
| Size / Dimension [y] | 1.61 " |
| Size / Dimension [y] | 40.9 mm |
| Size / Dimension [z] | 24.9 mm |
| Size / Dimension [z] | 0.98 in |
| Standard Number | C22.2, UL 8750 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] [custom] | 132 VAC |
| Voltage - Input (Min) [Min] | 108 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 46 V |
| Voltage - Output [Min] | 28 V |
| Weight | 0.368 lb |
| Weight | 166.92 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.69 | |
| 5 | $ 27.83 | |||
| 10 | $ 26.99 | |||
| 25 | $ 26.18 | |||
| 50 | $ 25.40 | |||
| 100 | $ 24.63 | |||
Description
General part information
LD16W Series
350mA 28 ~ 46V Constant Current LED Driver AC DC Converter Topology 1 Output
