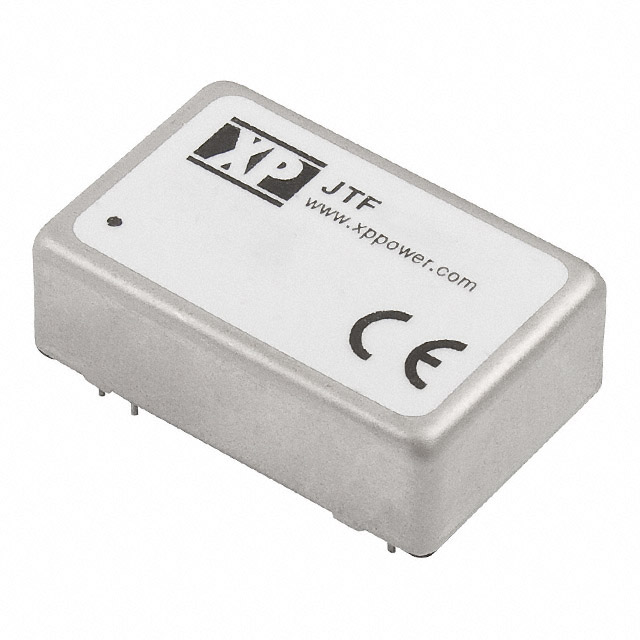

JTF0824S3V3
ActiveXP POWER
DC DC CONVERTER 3.3V 8W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JTF0824S3V3
ActiveXP POWER
DC DC CONVERTER 3.3V 8W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JTF0824S3V3 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 86 % |
| Features | OVP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 8 Leads |
| Power (Watts) | 8 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 30.80 | |
| 5 | $ 29.88 | |||
| 10 | $ 28.95 | |||
| 25 | $ 27.72 | |||
| 100 | $ 25.87 | |||
Description
General part information
JTF0824 Series
Isolated Module DC DC Converter 1 Output 3.3V 2A 9V - 36V Input
