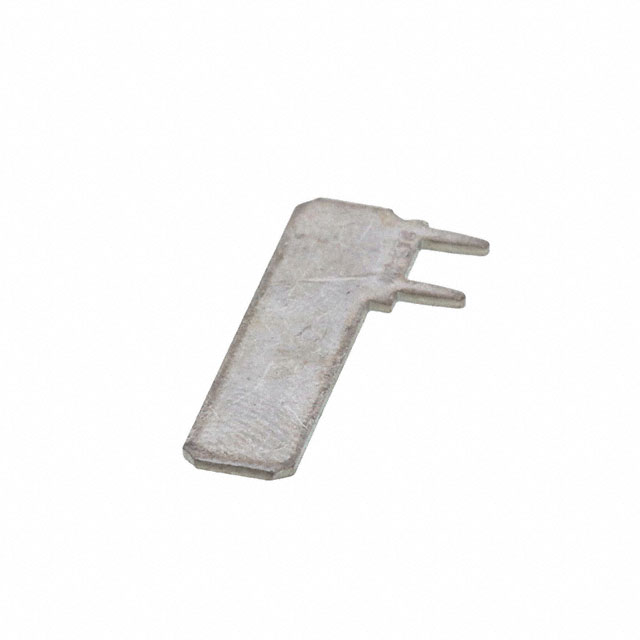

0197114005 - 0197114005

0197114005

Obsolete
Molex

CONN QC TAB 0.250 SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet19705,11,13 Series Prod Spec
0197114005 - 0197114005

0197114005

Obsolete
Molex

CONN QC TAB 0.250 SOLDER

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet19705,11,13 Series Prod Spec

Technical Specifications

Parameters and characteristics for this part

Specification0197114005
Contact FinishTin-Lead
Contact MaterialBrass
GenderMale
InsulationNon-Insulated
Mounting TypeThrough Hole, Right Angle
Tab Thickness0.032 in
Tab Thickness0.81 mm
Tab Width6.35 mm
Tab Width0.25 in
Terminal TypeAngled - 90°
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

019711 Series

0.250" (6.35mm) Quick Connect Male Solder Connector Non-Insulated
