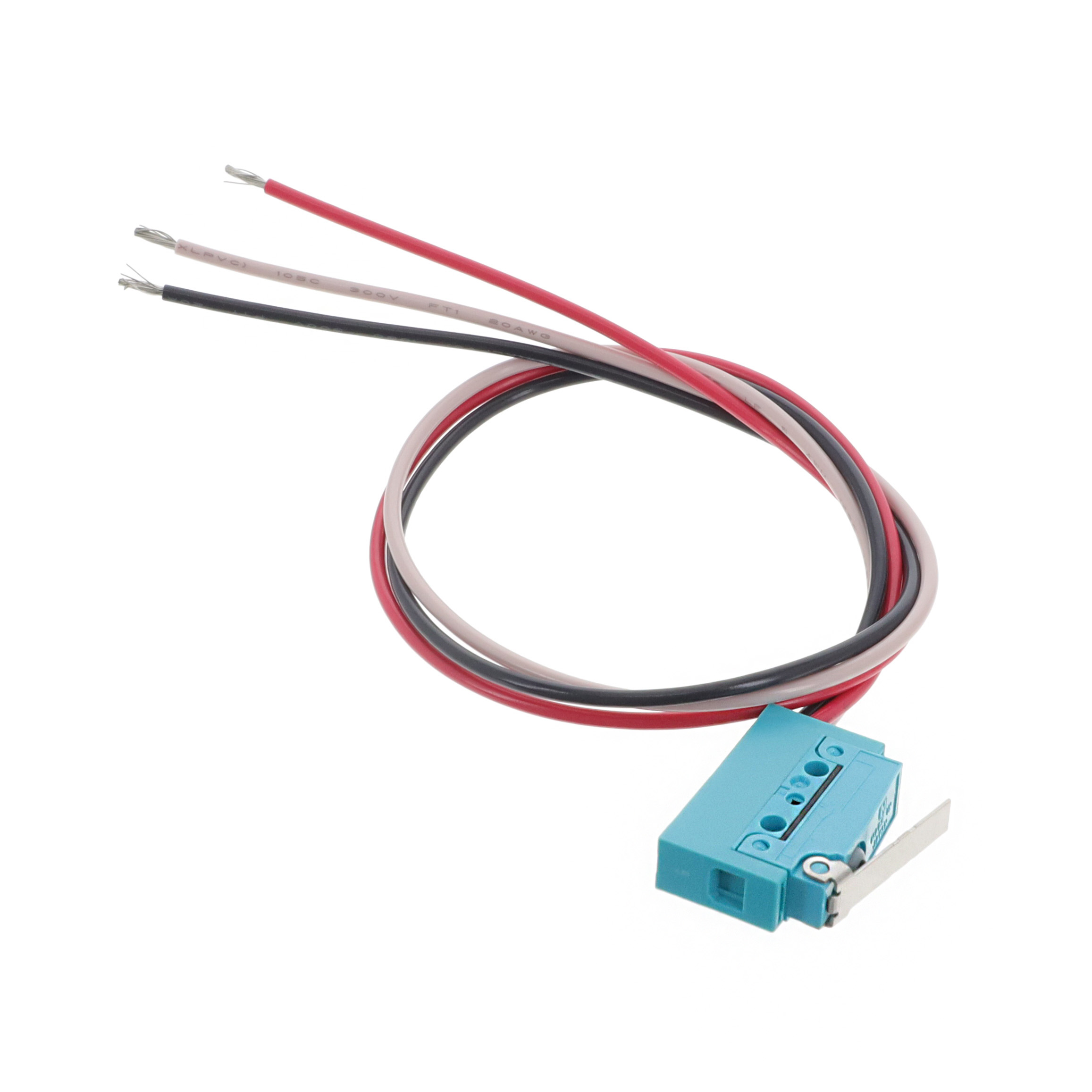

ABS461150
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 2A 125V
Deep-Dive with AI
Search across all available documentation for this part.
ABS461150
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 2A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ABS461150 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 2 A |
| Differential Travel | 0.5 mm |
| Differential Travel | 0.02 in |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 5000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 60 gf |
| Operating Position | 8.8 mm |
| Operating Position | 0.345 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.032 in |
| Overtravel | 0.81 mm |
| Pretravel | 0.1 in |
| Pretravel | 2.5 mm |
| Release Force | 4.079 gf |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.33 | |
| 10 | $ 4.26 | |||
| 25 | $ 4.05 | |||
| 50 | $ 3.94 | |||
| 100 | $ 3.41 | |||
| 250 | $ 3.20 | |||
| 500 | $ 3.04 | |||
| 1000 | $ 2.93 | |||
Description
General part information
ABS461 Series
Switch SPDT Chassis Mount
Documents
Technical documentation and resources
No documents available
