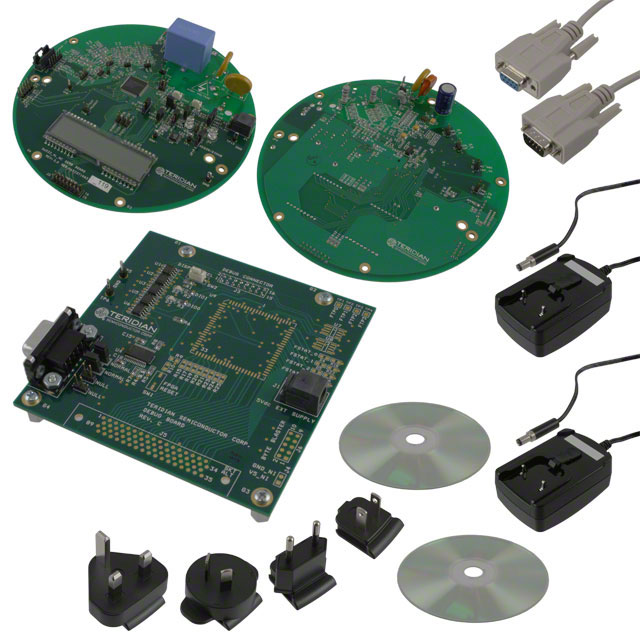

71M6533-DB

Unknown

Analog Devices Inc./Maxim Integrated

BOARD DEMO 71M6533

Search across all available documentation for this part.

Unknown

Analog Devices Inc./Maxim Integrated

BOARD DEMO 71M6533

Technical Specifications

Parameters and characteristics for this part

Part	Input Impedance [Max]	Input Impedance [Min]	Voltage - I/O High	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Measurement Error	Mounting Type	Meter Type	Current - Supply	Voltage - I/O Low	Supplier Device Package	Primary Attributes	Utilized IC / Part	Supplied Contents	Function	Type
Analog Devices Inc./Maxim Integrated 71M6533G-IGTR/F	90 kOhm	40 kOhm	2 V	100-LQFP	3 V	3.6 V	85 °C	-40 °C	0.1 %	Surface Mount	3 Phase	10 mA	0.8 V	100-LQFP (14x14)
Analog Devices Inc./Maxim Integrated 71M6533H-IGTR/F	90 kOhm	40 kOhm	2 V	100-LQFP	3 V	3.6 V	85 °C	-40 °C	0.1 %	Surface Mount	3 Phase	10 mA	0.8 V	100-LQFP (14x14)
Analog Devices Inc./Maxim Integrated 71M6533-IGT/F	90 kOhm	40 kOhm	2 V	100-LQFP	3 V	3.6 V	85 °C	-40 °C	0.1 %	Surface Mount	3 Phase	10 mA	0.8 V	100-LQFP (14x14)
Analog Devices Inc./Maxim Integrated 71M6533-DB															Three Phase Power Meter	71M6533	Board(s) Cable(s) Power Supply	Energy/Power Meter	Power Management
Analog Devices Inc./Maxim Integrated 71M6533-IGTR/F	90 kOhm	40 kOhm	2 V	100-LQFP	3 V	3.6 V	85 °C	-40 °C	0.1 %	Surface Mount	3 Phase	10 mA	0.8 V	100-LQFP (14x14)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

71M6533 Energy/Power Meter Power Management Evaluation Board

Technical documentation and resources

No documents available
