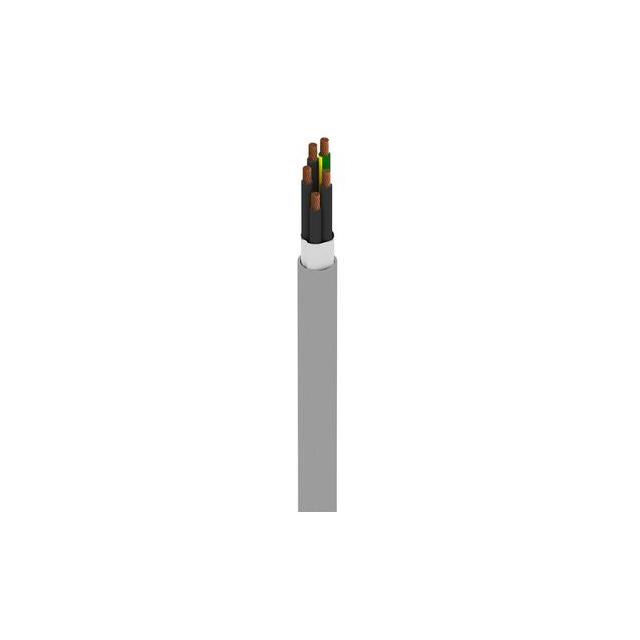

73805W 008500

Active

Belden Inc.

CABLE 5COND 18AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 5COND 18AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	73805W 008500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	8.28 mm
Jacket (Insulation) Diameter [diameter]	0.326 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	5
Ratings	UL Style 2587
Voltage	600 V
Wire Gauge	18 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Length [x]	Length [x]	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Number of Conductors	Ratings	Features	Cable Type	Wire Gauge	Length	Spool Size	Spool Size
Belden Inc. 73805W 008500	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	Copper Bare	16	30 AWG	Gray	Poly-Vinyl Chloride (PVC)	8.28 mm	0.326 in	600 V	5	UL Style 2587	Oil Resistant	Multi-Conductor	18 AWG
Belden Inc. 73805W 0081000	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)			Copper Bare	16	30 AWG	Gray	Poly-Vinyl Chloride (PVC)	8.28 mm	0.326 in	600 V	5	UL Style 2587	Oil Resistant	Multi-Conductor	18 AWG	Enter Number of Feet in Order Quantity	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.89

General part information

5 Conductor Multi-Conductor Cable Gray 18 AWG 500.0' (152.4m)
