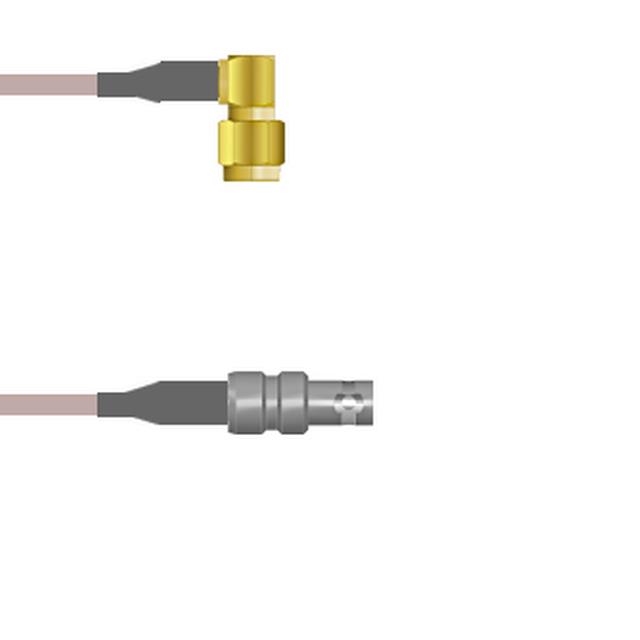

Q-3400Q0005.25M

Active

Amphenol Custom Cable

COAX CBL HD-BNC TO SMA 9.8"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL HD-BNC TO SMA 9.8"

Technical Specifications

Parameters and characteristics for this part

Part	1st Connector Mounting Type	Cable Type	1st Contact Gender	Overall Impedance	2nd Connector	Features	Length [x]	Length [x]	1st Connector	2nd Contact Gender	Color	Frequency - Max [Max]	Style	Cable Impedance	Connector Impedance	2nd Connector Mounting Type	Length	Length	Length	Length [x]
Amphenol Custom Cable Q-3400Q0003018I	Free Hanging (In-Line)	RG-174	Female	50 Ohms	SMA Plug Right Angle	Shielded	457.2 mm	457.2 mm	HD-BNC Jack	Male	Black	1 GHz	HD-BNC to SMA	50 Ohms	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-3400Q0005003M	Free Hanging (In-Line)	RG-316	Female	50 Ohms	SMA Plug Right Angle	Shielded			HD-BNC Jack	Male	Copper	3 GHz	HD-BNC to SMA	50 Ohms	50 Ohms	Free Hanging (In-Line)	3 m	118.1 in	9.8 '
Amphenol Custom Cable Q-3400Q0005.25M	Free Hanging (In-Line)	RG-316	Female	50 Ohms	SMA Plug Right Angle	Shielded		250 mm	HD-BNC Jack	Male	Copper	3 GHz	HD-BNC to SMA	50 Ohms	50 Ohms	Free Hanging (In-Line)				9.843 "
Amphenol Custom Cable Q-3400Q0003108I	Free Hanging (In-Line)	RG-174	Female	50 Ohms	SMA Plug Right Angle	Shielded			HD-BNC Jack	Male	Black	1 GHz	HD-BNC to SMA	50 Ohms	50 Ohms	Free Hanging (In-Line)	2.7 m	108 in	9 ft
Amphenol Custom Cable Q-3400Q0005012I	Free Hanging (In-Line)	RG-316	Female	50 Ohms	SMA Plug Right Angle	Shielded			HD-BNC Jack	Male	Copper	3 GHz	HD-BNC to SMA	50 Ohms	50 Ohms	Free Hanging (In-Line)	304.8 mm	12 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial HD-BNC to SMA RG-316 9.843" (250.00mm)

Technical documentation and resources

No documents available
