C3APS-5006M

Active

CW Industries

IDC CABLE - CSC50S/AE50M/CPC50S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSC50S/AE50M/CPC50S

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Usage	Shielding	Number of Positions	Connector Type	Color	Length	Length	Length
CW Industries C3APS-5018G	457.2 mm	1.5 ft	Tin	2.54 µm	100 µin	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Board In	Unshielded	50	Socket to PCB
CW Industries C3APS-5036M	914.4 mm	3 ft	Tin	2.54 µm	100 µin	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Board In	Unshielded	50	Socket to PCB	Multiple Ribbon
CW Industries C3APS-5006G			Tin	2.54 µm	100 µin	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Board In	Unshielded	50	Socket to PCB		152.4 mm	6 "	0.5 '
CW Industries C3APS-5006M			Tin	2.54 µm	100 µin	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Board In	Unshielded	50	Socket to PCB	Multiple Ribbon	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

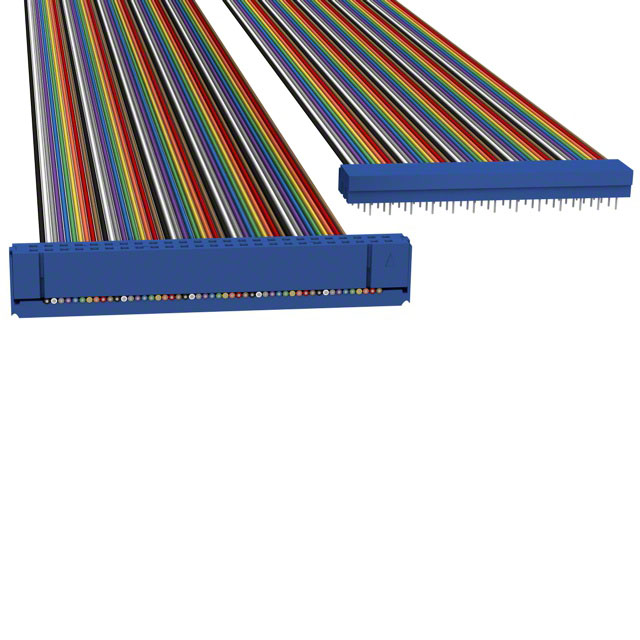

50 Position Cable Assembly Rectangular Socket to PCB 0.500' (152.40mm, 6.00")
