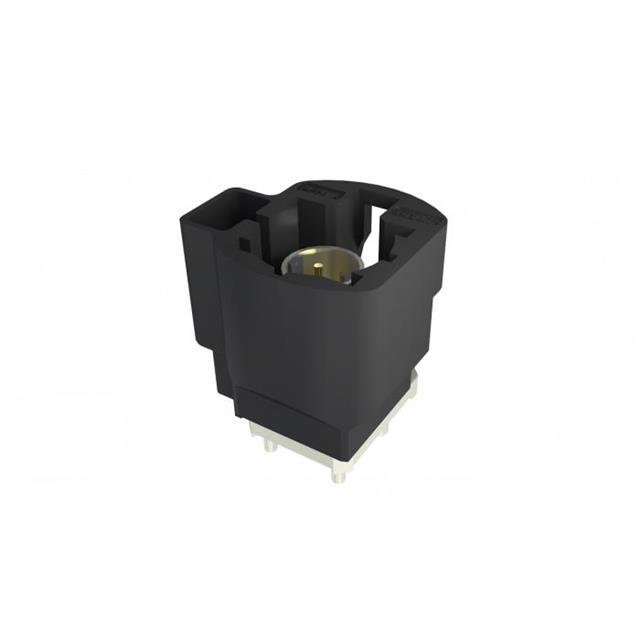

HSDNASPPCB15A
ActiveAmphenol ICC (Commercial Products)
HSD 4+2 ST. T/H CODE A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSDNASPPCB15A
ActiveAmphenol ICC (Commercial Products)
HSD 4+2 ST. T/H CODE A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSDNASPPCB15A |
|---|---|
| Body Finish | Tin |
| Body Material | Zinc Alloy |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | Quadraxial, Fakra, HSD® |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Thermoplastic |
| Fastening Type | Latch Lock |
| Features | Code A |
| Housing Color | Black |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.89 | |
| 10 | $ 1.61 | |||
| 25 | $ 1.51 | |||
| 50 | $ 1.43 | |||
| Tape & Reel (TR) | 150 | $ 1.33 | ||
| 300 | $ 1.26 | |||
| 450 | $ 1.23 | |||
| 750 | $ 1.18 | |||
| 1050 | $ 1.16 | |||
| 1500 | $ 1.13 | |||
| 3750 | $ 1.06 | |||
| 7500 | $ 1.01 | |||
Description
General part information
HSDNASPP Series
HSD®, Fakra, Quadraxial Connector Plug, Male Pin Through Hole Solder
