050R40-102B

Active

Parlex USA LLC

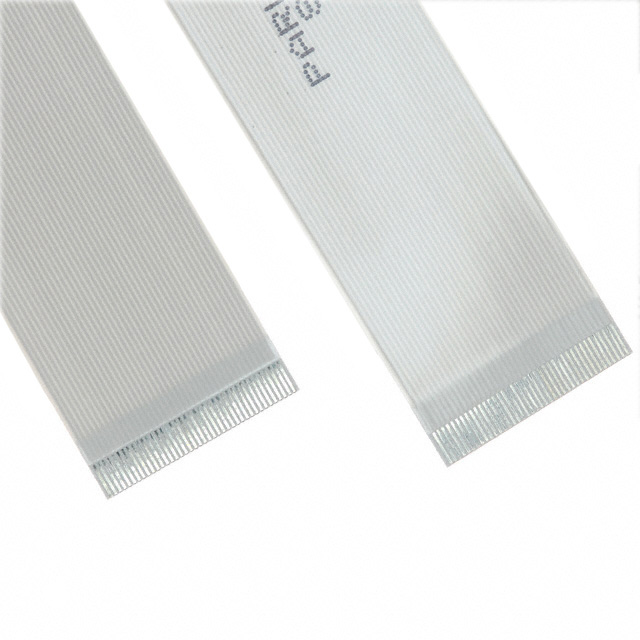

CABLE FFC/FPC 40POS 0.5MM 4"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 40POS 0.5MM 4"

Technical Specifications

Parameters and characteristics for this part

Specification	050R40-102B

Cable Type	FPC, FFC
Length	4 in
Length	101.6 mm
Length - Exposed Ends [x]	0.14 in
Length - Exposed Ends [x]	3.56 mm
Number of Conductors	40
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Pitch [x]	Pitch [x]	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Termination Style	Length	Length	Cable Type	Number of Conductors	Length [x]	Length [x]
Parlex USA LLC 050R40-51B	0.5 mm	0.02 in	0.14 in	3.56 mm	Backers on Both Sides Top on Both Sides	50.8 mm	2 in	FFC FPC	40
Parlex USA LLC 050R40-178BO	0.5 mm	0.02 in	0.14 in	3.56 mm	Top on One Side Bottom on Other Backers on Both Sides	178 mm	7.008 in	FFC FPC	40
Parlex USA LLC 050R40-178B	0.5 mm	0.02 in	0.14 in	3.56 mm	Backers on Both Sides Top on Both Sides	178 mm	7.008 in	FFC FPC	40
Parlex USA LLC 050R4-152B	0.5 mm	0.02 in	0.14 in	3.56 mm	Backers on Both Sides Top on Both Sides			FFC FPC	4	5.984 in	152 mm
Parlex USA LLC 050R40-17BO	0.5 mm	0.02 in	0.14 in	3.56 mm	Top on One Side Bottom on Other Backers on Both Sides			FFC FPC	40	0.669 in	17 mm
Parlex USA LLC 050R40-127B	0.5 mm	0.02 in	0.14 in	3.56 mm	Backers on Both Sides Top on Both Sides	127 mm	5 in	FFC FPC	40
Parlex USA LLC 050R40-152B	0.5 mm	0.02 in	0.14 in	3.56 mm	Backers on Both Sides Top on Both Sides			FFC FPC	40	5.984 in	152 mm
Parlex USA LLC 050R4-51B	0.5 mm	0.02 in	0.14 in	3.56 mm	Backers on Both Sides Top on Both Sides	50.8 mm	2 in	FFC FPC	4
Parlex USA LLC 050R40-102B	0.5 mm	0.02 in	0.14 in	3.56 mm	Backers on Both Sides Top on Both Sides	101.6 mm	4 in	FFC FPC	40
Parlex USA LLC 050R40-76B	0.5 mm	0.02 in	0.14 in	3.56 mm	Backers on Both Sides Top on Both Sides	76.2 mm	3 in	FFC FPC	40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position FFC, FPC Cable 0.020" (0.50mm) 4.000" (101.60mm)

Technical documentation and resources
