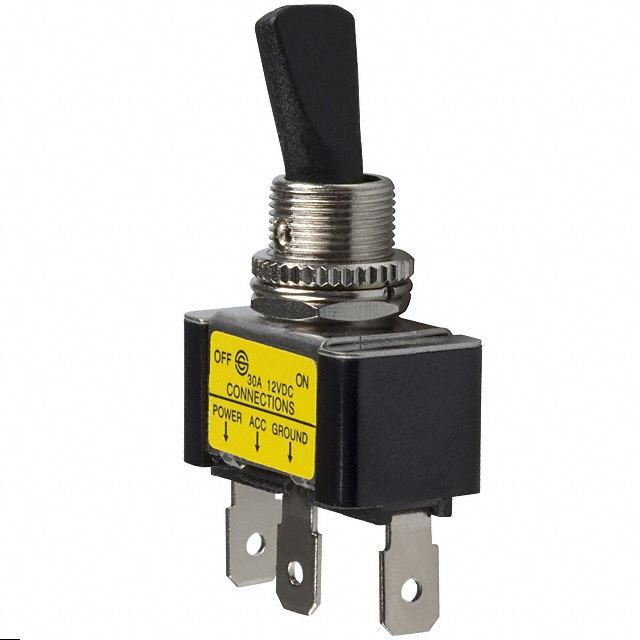

CLS-TC11A12251R

Obsolete

Lumex Opto/Components Inc.

SWITCH TOGGLE SPST 30A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLS-TC11A12251R

Obsolete

Lumex Opto/Components Inc.

SWITCH TOGGLE SPST 30A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLS-TC11A12251R

Actuator Type	Flatted
Bushing Thread	M12
Bushing Thread	0.75
Circuit	SPST
Illumination	Illuminated
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

CLS-TC11 Series

Part	Actuator Type	Switch Function	Voltage Rating - DC	Illumination Voltage (Nominal)	Illumination Type, Color	Termination Style	Illumination	Circuit	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Actuator Length [x]	Bushing Thread	Bushing Thread	Mounting Type
Lumex Opto/Components Inc. CLS-TC11A12253R	Flatted	On-Off	12 V	12 VDC	LED Red	Quick Connect - 0.250" (6.3mm)	Illuminated	SPST	12 mm	20 A	23.2 mm
Lumex Opto/Components Inc. CLS-TC11A12250R	Standard Round	On-Off	12 V	12 VDC	LED Red	Quick Connect - 0.250" (6.3mm)	Illuminated	SPST	12.2 mm	20 A	20 mm	M12	0.75
Lumex Opto/Components Inc. CLS-TC11A12252G	Flatted	On-Off	12 V	12 VDC	Green LED	Quick Connect - 0.250" (6.3mm)	Illuminated	SPST	12 mm	20 A	26.27 mm
Lumex Opto/Components Inc. CLS-TC11A12252Y	Flatted	On-Off	12 V	12 VDC	LED Yellow	Quick Connect - 0.250" (6.3mm)	Illuminated	SPST	12 mm	20 A	26.27 mm
Lumex Opto/Components Inc. CLS-TC11A12250B	Standard Round	On-Off	12 V	12 VDC	Blue LED	Quick Connect - 0.250" (6.3mm)	Illuminated	SPST	12.2 mm	20 A	20 mm	M12	0.75
Lumex Opto/Components Inc. CLS-TC11A12252R	Flatted	On-Off	12 V	12 VDC	LED Red	Quick Connect - 0.250" (6.3mm)	Illuminated	SPST	12 mm	20 A	26.27 mm
Lumex Opto/Components Inc. CLS-TC11A12190R	Flatted	On-Off	12 V	12 VDC	LED Red	Quick Connect - 0.187" (4.7mm)	Illuminated	SPST	20.2 mm	20 A				Panel Mount Snap-In
Lumex Opto/Components Inc. CLS-TC11A12251R	Flatted	On-Off	12 V	12 VDC	LED Red	Quick Connect - 0.250" (6.3mm)	Illuminated	SPST	12.2 mm			M12	0.75
Lumex Opto/Components Inc. CLS-TC11A12251G	Flatted	On-Off	12 V	12 VDC	Green LED	Quick Connect - 0.250" (6.3mm)	Illuminated	SPST	12.2 mm			M12	0.75
Lumex Opto/Components Inc. CLS-TC11A12251Y	Flatted	On-Off	12 V	12 VDC	LED Yellow	Quick Connect - 0.250" (6.3mm)	Illuminated	SPST	12.2 mm			M12	0.75

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CLS-TC11 Series

Toggle Switch SPST Panel Mount
