8200-4565
ActiveTWIN INDUSTRIES

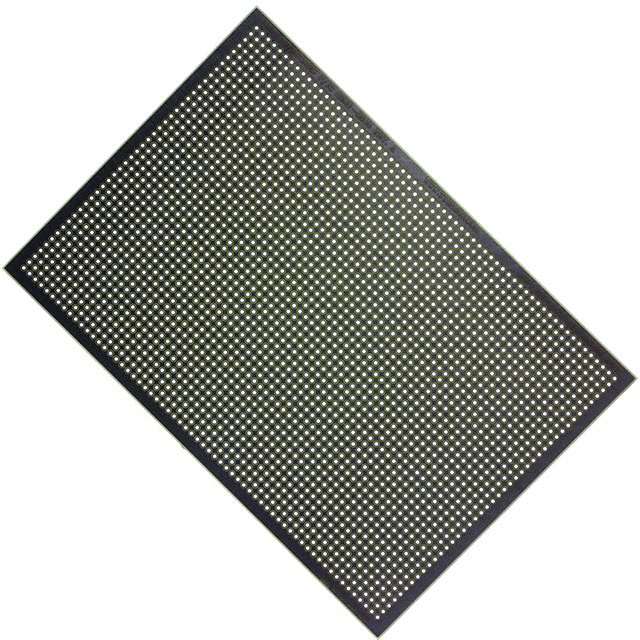

PROTOTYPE BOARD, 4.5" WIDTH X 6.5" HEIGHT, 0.037" HOLE DIAMETER, EPOXY GLASS COMPOSITE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
8200-4565
ActiveTWIN INDUSTRIES
PROTOTYPE BOARD, 4.5" WIDTH X 6.5" HEIGHT, 0.037" HOLE DIAMETER, EPOXY GLASS COMPOSITE
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | 8200-4565 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 0.0625 in |
| Board Thickness | 1.57 mm |
| Circuit Pattern | Pad Per Hole (Round) |
| Hole Diameter [diameter] | 0.037 in |
| Hole Diameter [diameter] | 0.94 mm |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Proto Board Type | Breadboard, General Purpose |
| Size / Dimension [x] | 165.1 mm |
| Size / Dimension [x] | 6.5 in |
| Size / Dimension [y] | 4.5 in |
| Size / Dimension [y] | 114.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.67 | |
Description
General part information
8200 Series
8200-4565 is a 8200 series protoboard. It provides a versatile solution for electronic hardware development. It made with high quality FR4 material. It featuring a 0.1"x0.1" grid of plated through hole, two plane.
