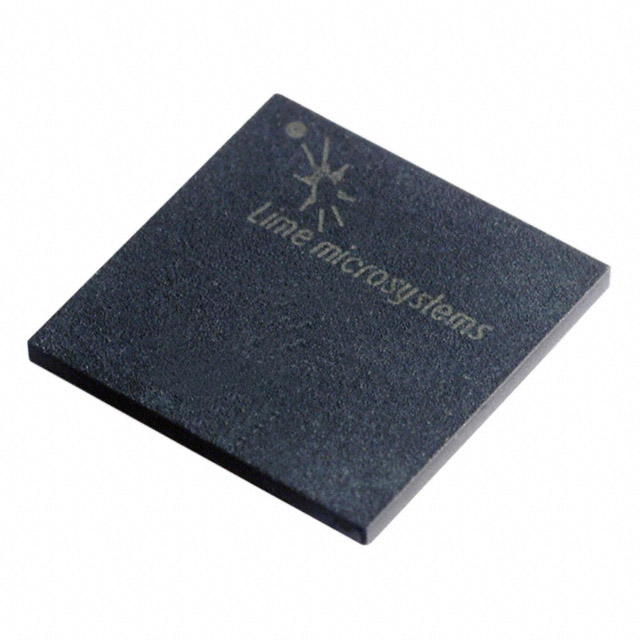

LMS6002DFN
ActiveLime Microsystems Ltd
IC RF TXRX CELLULAR 120VFQFN
Deep-Dive with AI
Search across all available documentation for this part.
LMS6002DFN
ActiveLime Microsystems Ltd
IC RF TXRX CELLULAR 120VFQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LMS6002DFN |
|---|---|
| Current - Receiving | 220 mA |
| Current - Transmitting | 280 mA |
| Frequency [Max] | 3.8 GHz |
| Frequency [Min] | 300 MHz |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 120-VFQFN Dual Rows, Exposed Pad |
| Power - Output | 6 dBm |
| Protocol | CDMA, GSM, HSPA, LTE, WCDMA |
| RF Family/Standard | Cellular |
| Serial Interfaces | SPI |
| Type | TxRx Only |
| Voltage - Supply [Max] | 3.5 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 40.62 | |
| Digi-Reel® | 1 | $ 40.62 | ||
| Tape & Reel (TR) | 250 | $ 40.63 | ||
Description
General part information
LMS6002 Series
IC RF TxRx Only Cellular CDMA, GSM, HSPA, LTE, WCDMA 300MHz ~ 3.8GHz 120-VFQFN Dual Rows, Exposed Pad
