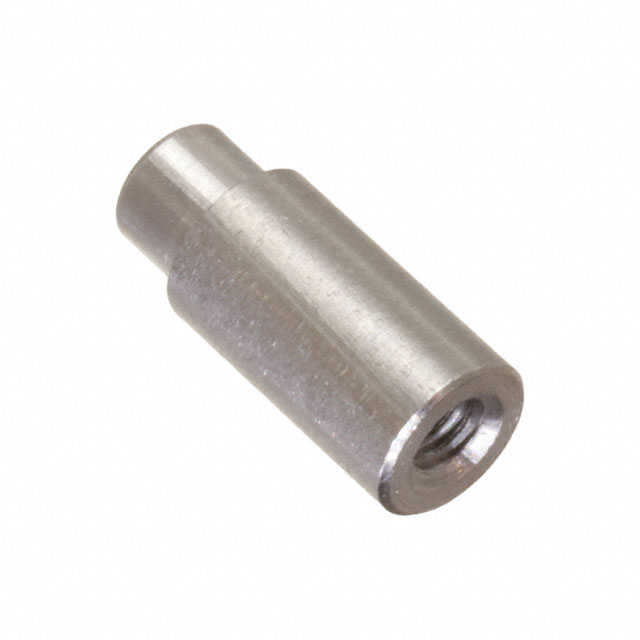

M1544-B-3005-AL
ActiveRAF Electronic Hardware
6_MM_ROUND_SWAGE_STANDOFFS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M1544-B-3005-AL |
|---|---|
| Between Board Height | 0.472 in |
| Between Board Height | 12 mm |
| Diameter - Outside [diameter] | 0.236 in |
| Diameter - Outside [diameter] | 6 mm |
| Gender | Swage, Female |
| Length - Overall | 14.7 mm |
| Length - Overall | 0.579 in |
| Material | Aluminum |
| Screw, Thread Size | M3x0.5 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.29 | |
| 5 | $ 2.17 | |||
| 10 | $ 2.12 | |||
| 25 | $ 2.06 | |||
| 50 | $ 2.01 | |||
Description
General part information
M1544 Series
Round Standoff Threaded M3x0.5 Aluminum 0.472" (12.00mm)
