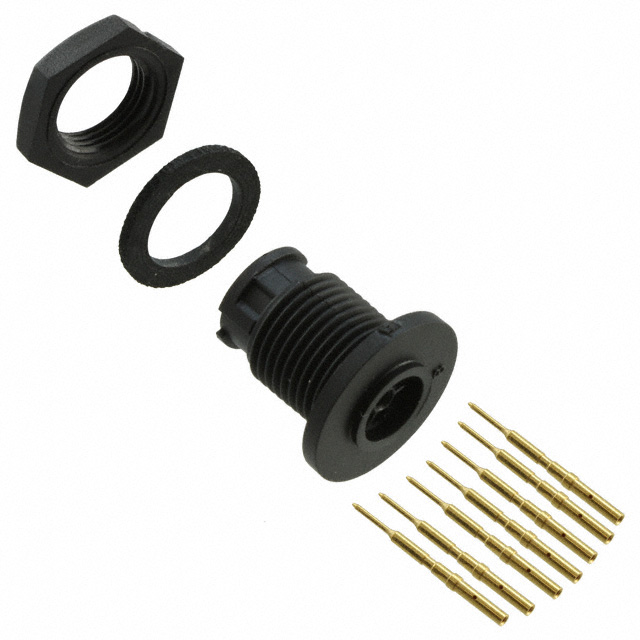

17980-7PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 7POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 7POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	17980-7PG-300

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3.5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

Part	Connector Type	Ingress Protection	Fastening Type	Current Rating (Amps)	Number of Positions	Applications	Contact Material	Contact Finish - Mating	Mounting Feature	Termination	Material Flammability Rating	Orientation	Color	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Voltage Rating	Primary Material
Conxall/Switchcraft 17980-7PG-300	Male Pins Receptacle	IP67 - Dust Tight Waterproof	Bayonet Lock	3.5 A	7	Data Industrial Instrumentation Medical	Copper Alloy	Gold	Bulkhead - Front Side Nut	Crimp	UL94 HB	B	Black	85 °C	-40 °C	Unshielded	600 VAC	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Crimp
