1055018-1
ObsoleteTE Connectivity Raychem Cable Protection

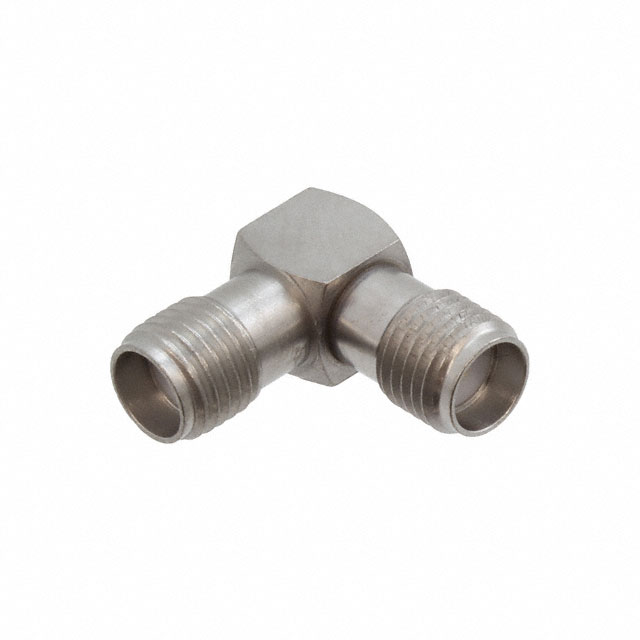

CONN ADAPT JACK-JACK SMA 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1055018-1
ObsoleteTE Connectivity Raychem Cable Protection
CONN ADAPT JACK-JACK SMA 50 OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1055018-1 |
|---|---|
| Adapter Series | SMA to SMA |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Style | Right Angle |
1055 Series
| Part | Accessory Type | Shield Termination | Number of Ports | Frequency - Max [Max] | Connector Style | Contact Termination | Mounting Type | Impedance | Connector Type | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Center Contact Material | Center Contact Plating | Conversion Type | Body Material | Style | Adapter Type | Convert From (Adapter End) | Adapter Series | Center Gender | Convert To (Adapter End) | Mating Cycles | Color | Body Finish | Center Contact Finish | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | ||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Gasket | |||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Solder | 1 | 6000 MHz | OSMT | Microstrip Solder | Surface Mount | 50 Ohms | Male Pin Receptacle | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Snap-On | Copper Alloy | Gold | ||||||||||||||
TE Connectivity Raychem Cable Protection | 18 GHz | Free Hanging (In-Line) Right Angle | 50 Ohms | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Gold | Same Series | Stainless Steel | Right Angle | Jack to Jack | Female Socket SMA Jack | SMA to SMA | Female to Female | Female Socket SMA Jack | 500 | |||||||||||||
TE Connectivity Raychem Cable Protection | Hermetic Seal | Nickel-Cobalt | Nickel-Cobalt | Gold | Gold | Gold | ||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 18 GHz | Free Hanging (In-Line) Right Angle | 50 Ohms | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Beryllium Copper | Gold | Same Series | Stainless Steel | Right Angle | Plug to Jack | SMA Plug Male Pin | OSM to OSM | Female Socket SMA Jack | 500 | Gold | |||||||||||
TE Connectivity Raychem Cable Protection | Solder | 1 | 6000 MHz | OSMT | Microstrip Solder | Surface Mount | 50 Ohms | Male Pin Receptacle | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Snap-On | Copper Alloy | Gold | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1055 Series
Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
