19396100546

Active

HARTING Technology Group

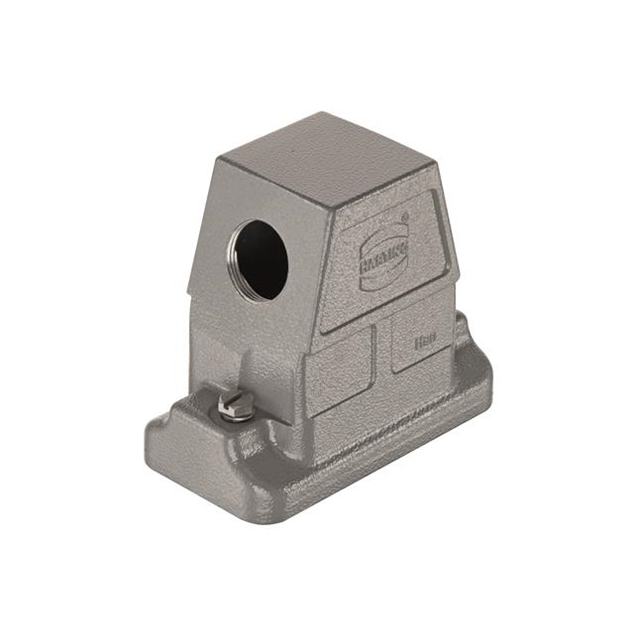

HAN 10 HP DIRECT B HOOD, SIDE ENTRY, M25

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 10 HP DIRECT B HOOD, SIDE ENTRY, M25

Technical Specifications

Parameters and characteristics for this part

Specification	19396100546

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	106 mm
Size / Dimension [x]	4.173 "
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	95 mm
Size / Dimension [z]	3.74 in
Style	Side Entry
Thread Size	M25

Part	Housing Color	Ingress Protection	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Thread Size	Connector Type	Housing Finish	Size	Operating Temperature [Max]	Operating Temperature [Min]	Style	Lock Location	Housing Material
HARTING Technology Group 19396100546	Gray	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	95 mm	57 mm	3.74 in	2.244 "	106 mm	4.173 "	M25	Hood	Powder Coated	10B	125 °C	-40 °C	Side Entry	Screw Locks on Hood	Aluminum Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M25 10B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
