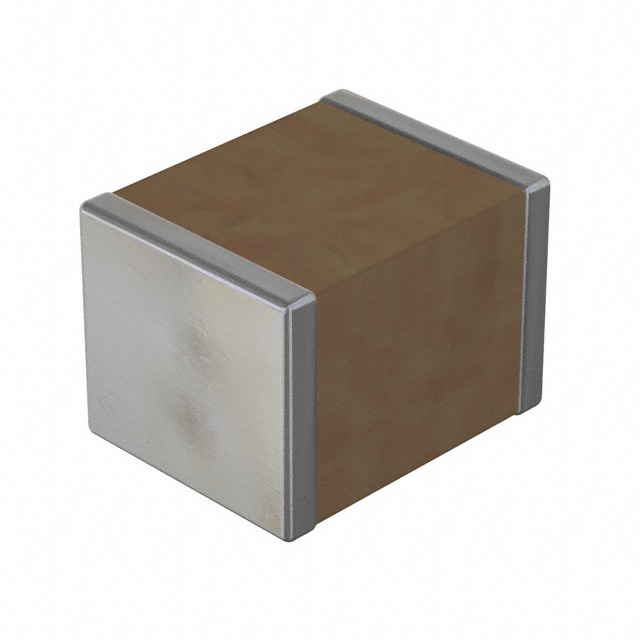

2520B102K502NT
ActiveKnowles Johanson Manufacturing
CAP CER 1000PF 5KV X7R 2520
Deep-Dive with AI
Search across all available documentation for this part.
2520B102K502NT
ActiveKnowles Johanson Manufacturing
CAP CER 1000PF 5KV X7R 2520
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2520B102K502NT |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.001 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2520 |
| Package / Case | 6450 Metric |
| Size / Dimension [x] | 0.25 " |
| Size / Dimension [x] | 6.35 mm |
| Size / Dimension [y] | 5.08 mm |
| Size / Dimension [y] | 0.2 " |
| Temperature Coefficient | X7R |
| Thickness (Max) [Max] | 4.57 mm |
| Thickness (Max) [Max] | 0.18 in |
| Tolerance | 10 % |
| Voltage - Rated | 5 kV |
| Voltage - Rated | 5 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.65 | |
| 10 | $ 2.58 | |||
| 50 | $ 2.25 | |||
| 100 | $ 2.02 | |||
| 500 | $ 1.77 | |||
| Digi-Reel® | 1 | $ 3.65 | ||
| 10 | $ 2.58 | |||
| 50 | $ 2.25 | |||
| 100 | $ 2.02 | |||
| 500 | $ 1.77 | |||
| Tape & Reel (TR) | 1000 | $ 1.73 | ||
| 2000 | $ 1.61 | |||
| 3000 | $ 1.59 | |||
| 5000 | $ 1.57 | |||
Description
General part information
2520B Series
1000 pF ±10% 5000V (5kV) Ceramic Capacitor X7R 2520 (6450 Metric)
Documents
Technical documentation and resources
No documents available
